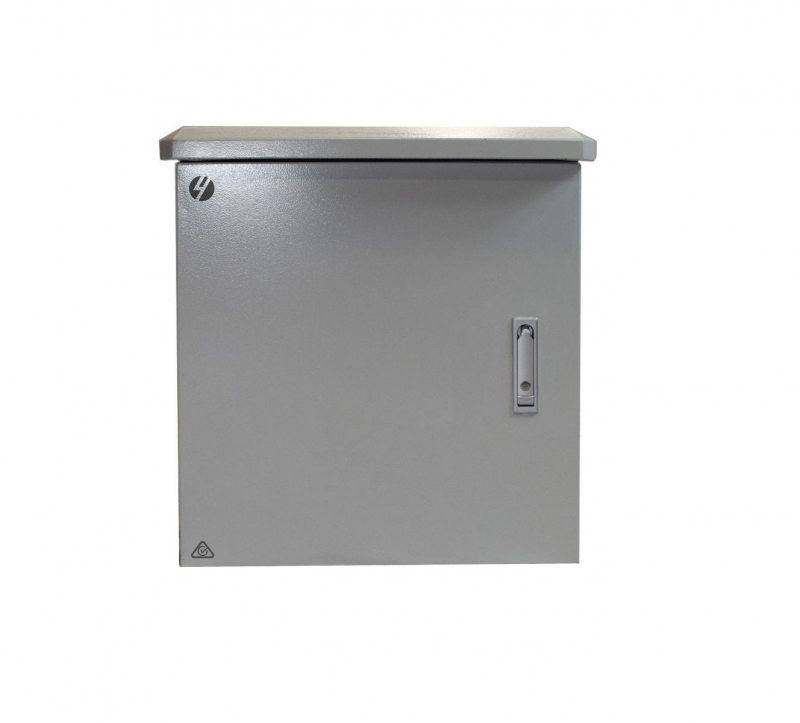

The image shown above is of the 12RU

4Cablings Outdoor Wall Mount Server Rack Cabinets are designed to protect your sensitive network equipment from harsh environments. This 6RU cabinet includes robust features to safeguard it from the elements, while still keeping the equipment secure.

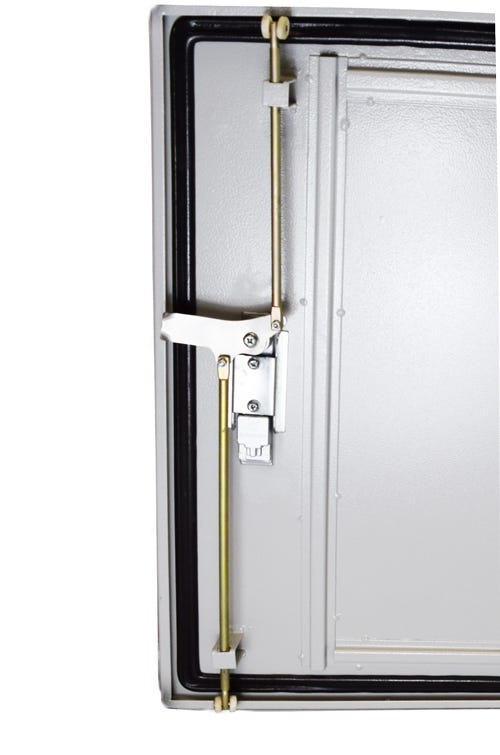

The outdoor server rack includes a high-grade polyurethane door joint strip and a rain hood to prevent water ingress. It is secured with a 3-point swing handle locking system, and all fixtures are internal to the cabinet to provide a secure solution.

Constructed from durable galvanized steel with a fully welded design for strength, this cabinet is built to last. It arrives fully assembled and ready to install, saving you time on-site.

Inside, it offers a maximum rail-to-rail depth of 340mm (which is adjustable) and features front-mounted vertical cable management rings on both sides. Round cable glands with removable rubber covers on the base allow for easy and protected cable entry.

FEATURES
Secure door with 3-point locking system
Fully welded design for strength and durability
Made from galvanized steel
Supplied fully assembled, ready to be installed
Rain hood included
Max rail to rail depth of 340mm (adjustable)
Front-mounted vertical cable management rings on both sides
Round cable glands with removable rubber covers on the base
IP65 rated to protect it from dust and rain
High-grade polyurethane door joint strip
SPECIFICATIONS
External Dimensions: 650mm Wide x 450mm Deep x 400mm High
Colour: Grey
Protection Rank: IP65 rated standard IEC 60529:2013
RU Size: 6RU
Material: Galvanized steel
Net Weight: 23kg
Load Capacity: 130kg
WARRANTY

2-years limited warranty
