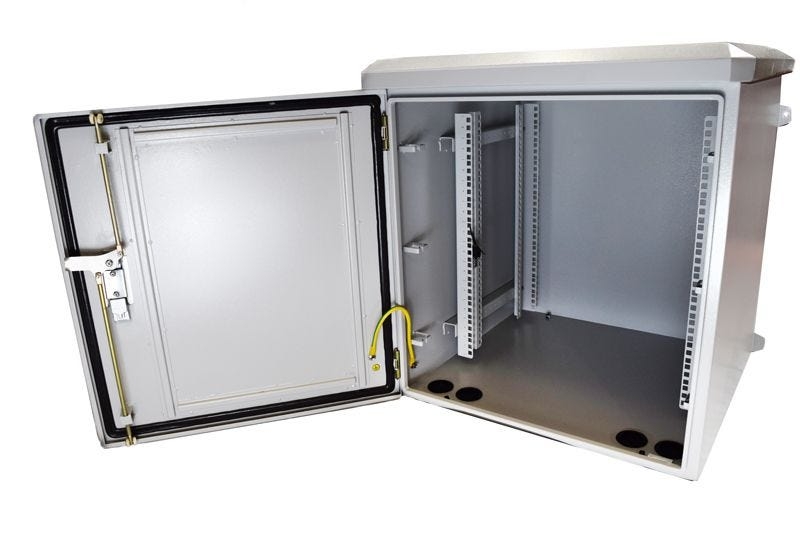

The image shown above is of the 12RU.

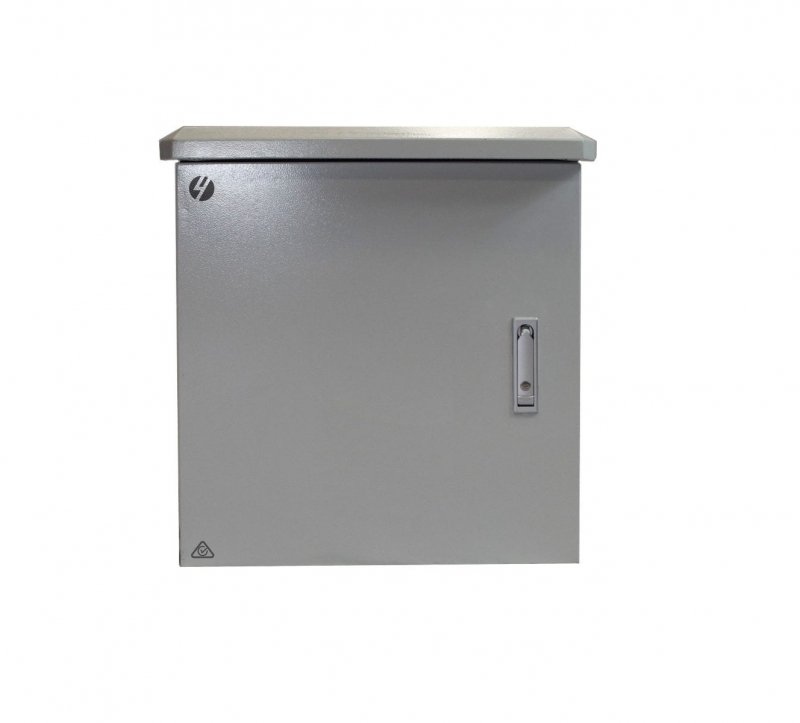

Protect your sensitive network equipment from harsh environments with the 9RU 600mm Wide x 600mm Deep Galvanized Steel Outdoor Wall Mount Cabinet. This robust cabinet is designed to safeguard your gear from the elements, featuring an IP65 rating (IEC 60529:2013) to protect against dust and rain.

Security is paramount, with all fixtures kept internal. The lockable front door features a secure 3-point swing handle locking system. Built for durability, this cabinet is fully welded from strong galvanized steel and includes a high-grade polyurethane door joint strip to ensure a tight, weather-resistant seal.

Supplied fully assembled and ready to install, this 9RU cabinet includes a rain hood for extra protection. Inside, adjustable 19-inch L-rails (front and rear) with RU markings allow for flexible equipment mounting up to a 370mm depth. Please note: This unit does not include fans or filters.

Cable management is streamlined with front-mounted vertical rings and round cable glands on the base with removable rubber covers. With a static load capacity of 130KG, this grey outdoor server rack is the ideal solution for deploying equipment externally.



FEATURES

- Secure door with 3-point locking system
- Fully welded design for strength and durability
- Made from galvanized steel
- Supplied fully assembled, ready to be installed
- Rain hood included
- Max rail to rail depth of 370mm that can be adjusted to your needs
- Front-mounted vertical cable management rings on both sides
- Round cable glands with removable rubber covers on the base
- IP65 rated to protect it from dust and rain
- High-grade polyurethane door joint strip

SPECIFICATIONS

- External Dimensions: 650mm Wide x 650mm Deep x 540mm High
- Colour: Grey
- Protection Rank: IP65 rated standard IEC 60529:2013
- RU Size: 9RU
- Material: Galvanized steel
- Weight: 33.5kg
- Load Capacity: 130kg

WARRANTY
2-years limited warranty
