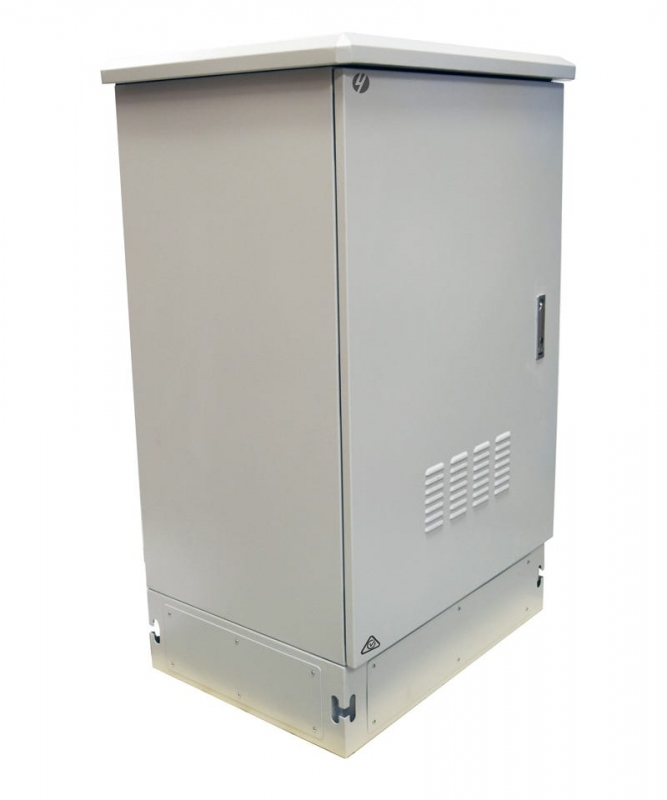

Protect your sensitive network equipment from harsh Australian environments with this robust 22RU 800mm Wide x 600mm Deep Freestanding Outdoor Cabinet. Constructed from durable galvanized steel and featuring a fully welded design, this cabinet is built to last. It offers superior protection from the elements, keeping your equipment secure and well-ventilated.

Achieving an IP45 rating, this cabinet is designed to safeguard your gear from rain and dust. It includes a protective rain hood, a high-grade polyurethane door joint strip, and a lockable vented front door secured with a 3-point locking system. All fixtures are internal, ensuring a secure solution against tampering.

Installation and maintenance are made easy. The cabinet arrives fully assembled and includes a 200mm high plinth for stable, raised mounting. It features adjustable 19-inch mounting rails (front and rear) with clear RU markings, front-mounted vertical cable management rings, and round cable glands on the base for tidy cable entry.

Keep your equipment cool with the included 4-way ceiling mount fan kit with a dedicated switch. The vented front door also features a replaceable filter, promoting airflow while keeping contaminants out. With a static load capacity of 800kg, this cabinet is a secure and reliable choice for any outdoor deployment.

FEATURES
Vented front door with 3-point locking system and replaceable filter
Fully welded design for strength and durability
Made from Galvanized steel
Supplied fully assembled, ready to be installed
Rain hood Included

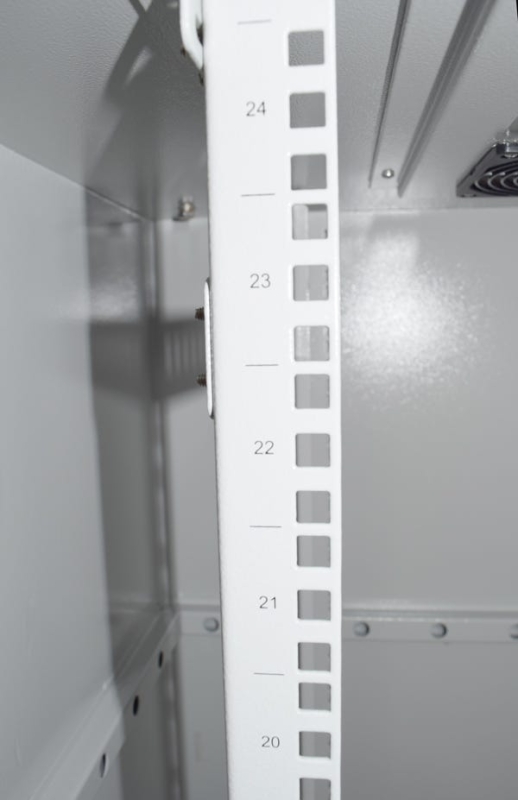

Adjustable 19" mounting rails installed front and rear with RU markings
Max rail to rail depth of 370mm that can be adjusted to your needs
Front-mounted vertical cable management rings on both sides
Round cable glands with removable rubber covers on the base
High-grade polyurethane door joint strip
IP45 rated to protect it from rain
Earthing bar conveniently located at the front
Includes 200mm high plinth
4-way ceiling mount fan kit with switch included
SPECIFICATIONS
External Dimensions: 850mm Wide x 650mm Deep
Colour: Grey
Protection Rank: IP45 rated standard IEC 60529:2013
RU Size: 22RU
Material: Galvanized steel
Net Weight: 117kg
Load Capacity: 800kg
WARRANTY

2-Years Limited Warranty
