The 45U 600x600mm Server Rack is the ultimate pre-assembled solution for housing your critical IT equipment, including servers, cabling, and telecommunications hardware. Fully NSW Department of Education Approved, this cabinet is designed for rapid deployment in any IT, industrial, or educational environment. Its robust and rigid construction ensures exceptional stability, boasting an impressive static loading capacity of over 1000kg, providing a secure foundation for your entire network infrastructure.

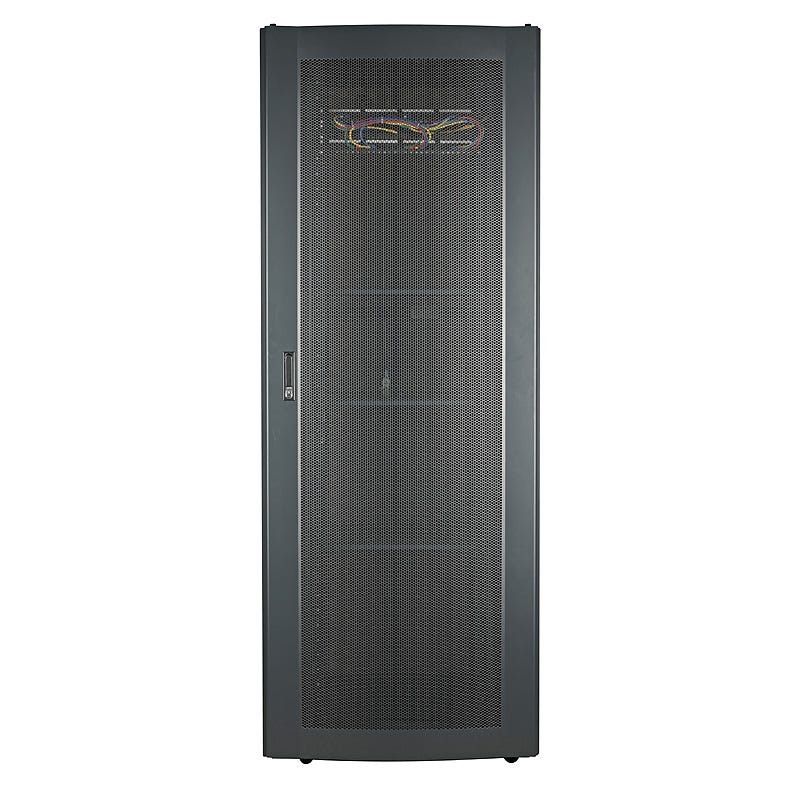

Engineered for superior thermal management and security, this rack features a single perforated curved mesh front door and a bi-fold perforated flat mesh rear door. This design promotes optimal airflow, preventing equipment from overheating while allowing for visual inspection. Both doors, along with the removable side panels, are fitted with secure locks (customised key LF92380), ensuring your assets are protected against unauthorised access while still allowing for easy maintenance and equipment changes.

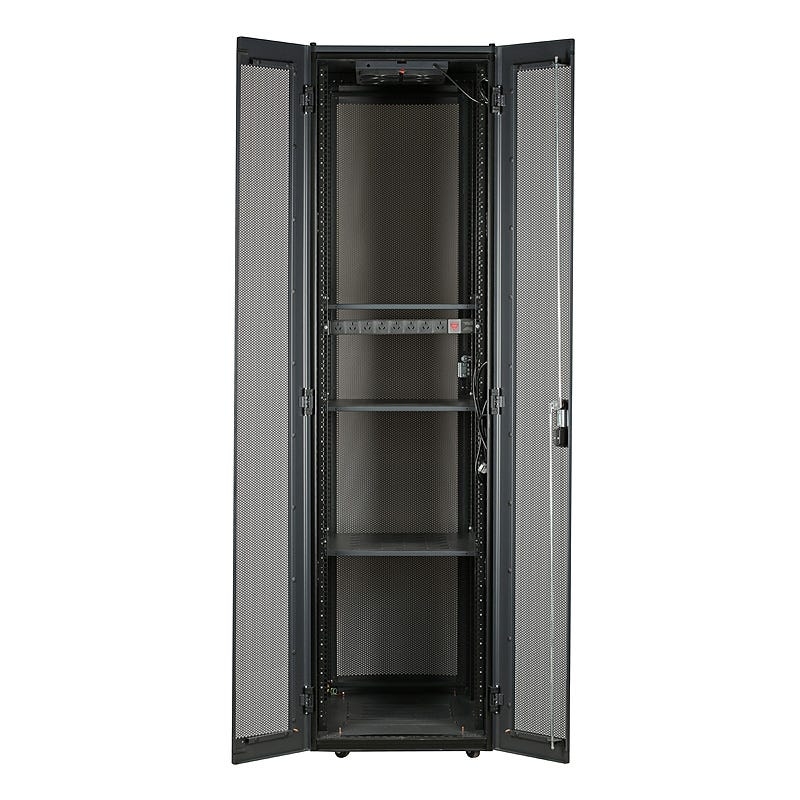

This server cabinet is a comprehensive package, arriving complete with essential accessories to get you started immediately. It includes a 4-way ceiling-mounted fan kit for active cooling, three heavy-duty fixed shelves for non-rack-mount devices, and an 8-way Australian-type Power Distribution Unit (PDU). Please note that to meet Department of Education specifications, this rack requires the separate installation of a 10-way Vertical IEC 60297-2 PDU with a 15A captive plug (SKU: PDU.10V.15A).

Ease of use is central to this cabinet's design. It features adjustable 19-inch L-rails at the front and rear, complete with printed 'U' markings to simplify equipment alignment and installation. Cable management is made easy with entry glands on the top and bottom panels. For mobility and stability, the rack is equipped with four lockable castors and four adjustable levelling feet, allowing you to position it perfectly and secure it in place.

FEATURES
NSW Department of Education Approved
Supplied fully-assembled for rapid deployment
Single perforated curved mesh front door with secure spring handle lock
Bi-fold perforated flat mesh rear door with secure spring handle lock
Removable side panels with bolt locks for easy access
Includes 4-way ceiling mount fan kit for active cooling
Comes with 3 heavy-duty fixed shelves
Requires 10-way Vertical IEC 60297-2 PDU (SKU: PDU.10V.15A) for DoE compliance
Fitted with 4 lockable castors and 4 adjustable levelling feet
Convenient cable entry glands on the top and bottom
Adjustable 19" L-rails at front and rear with printed 'U' markings
Includes 20 sets of M6 cage nuts and earthing bolts
SPECIFICATIONS
Part Number: 002.016.4566
Capacity: 45U
Static Loading Capacity: 1000kg
External Dimensions (WxDxH): 600mm x 600mm x 2150mm
Gross Weight: 115kg
Doors: Mesh front and rear doors
Included Fans: 4 x 120mm fans
Included Shelves: 3 x Fixed Shelves
Included PDU: 1 x 8-way Australian Type (Standard)
Required PDU (DoE): 10-way Vertical IEC 60297-2 with 15A captive plug (SKU: PDU.10V.15A)
Included Hardware: 20 x M6 Cage Nut Sets
Mounting Rails: Adjustable 19" L-Rails
WARRANTY

3-Year Limited Warranty
