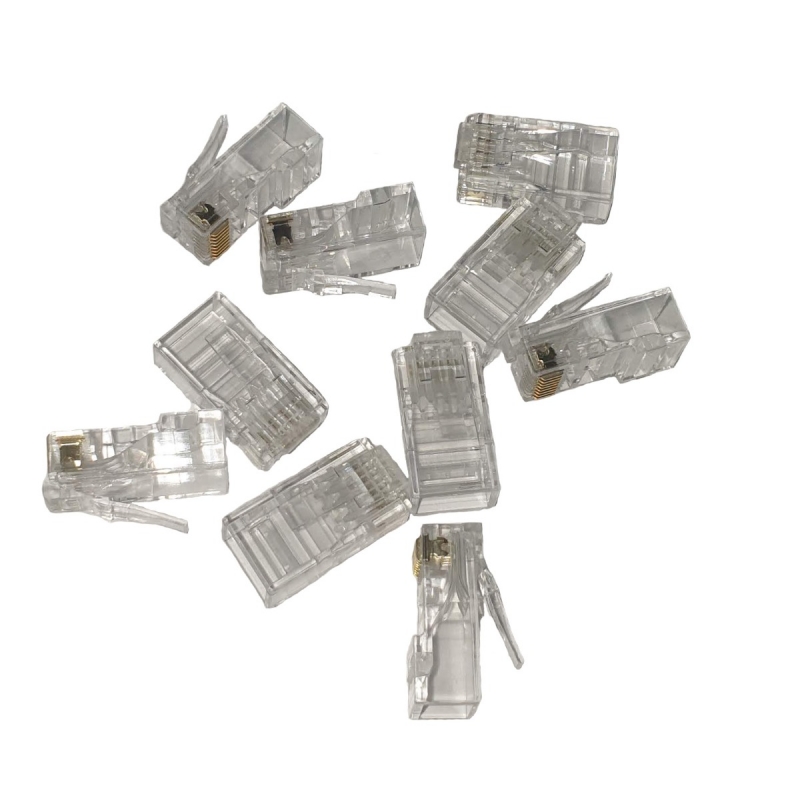

Cat 6 8 Position RJ45 One-Piece Modular Crimp Plug | Stranded | 10 Pack 005.002.0034
SKU
378176
Brand
MPN
005.002.0034
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$10.00
Buy Now And Earn 10 Reward Points!
Cat 6 8 Position RJ45 One-Piece Modular Crimp Plug | Stranded | 10 Pack
This Cat-6 RJ45 8-position one-piece modular crimp plug is designed for stranded category 6 patch cable.& The one-piece& design can be used with almost any standard modular RJ45 crimp tool.
Features
- 50μ gold plated contacts.
- 8P8C.
- Suitable for 23AWG ~ 26AWG wire
- Insulation resistance: 500MΩ
- Contact resistance: 20mΩ MAX
- Operating ambient temperature:40°C ~ 70°C
- Strain relief: 20 pounds min
- Durability: 1200 mating cycles
- POE compliant
- Pack of 10 pieces
Materials
- Housing: Polycarbonate, UL94V
- Colour: Transparent
- Contact blade: Copper alloy
- Gold plating: 50μ
| SKU | 005.002.0034 |
|---|---|
| Colour | Clear |
| Connector Type | RJ45 Male |
| Package | Pack of 10 |
| Warranty | 3 Years |
Cat 6 8 Position RJ45 One-Piece Modular Crimp Plug | Stranded | 10 Pack
This Cat-6 RJ45 8-position one-piece modular crimp plug is designed for stranded category 6 patch cable.& The one-piece& design can be used with almost any standard modular RJ45 crimp tool.
Features
- 50μ gold plated contacts.
- 8P8C.
- Suitable for 23AWG ~ 26AWG wire
- Insulation resistance: 500MΩ
- Contact resistance: 20mΩ MAX
- Operating ambient temperature:40 C ~ 70 C
- Strain relief: 20 pounds min
- Durability: 1200 mating cycles
- POE compliant
- Pack of 10 pieces
Materials
- Housing: Polycarbonate, UL94V
- Colour: Transparent
- Contact blade: Copper alloy
- Gold plating: 50μ
Warranty
3 year limited warranty.
