Cat 6 8 Position RJ45 One-Piece Modular Crimp Plug | Solid | 10 Pack 005.002.0035
SKU
378177
Brand
MPN
005.002.0035
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$10.00
Buy Now And Earn 10 Reward Points!

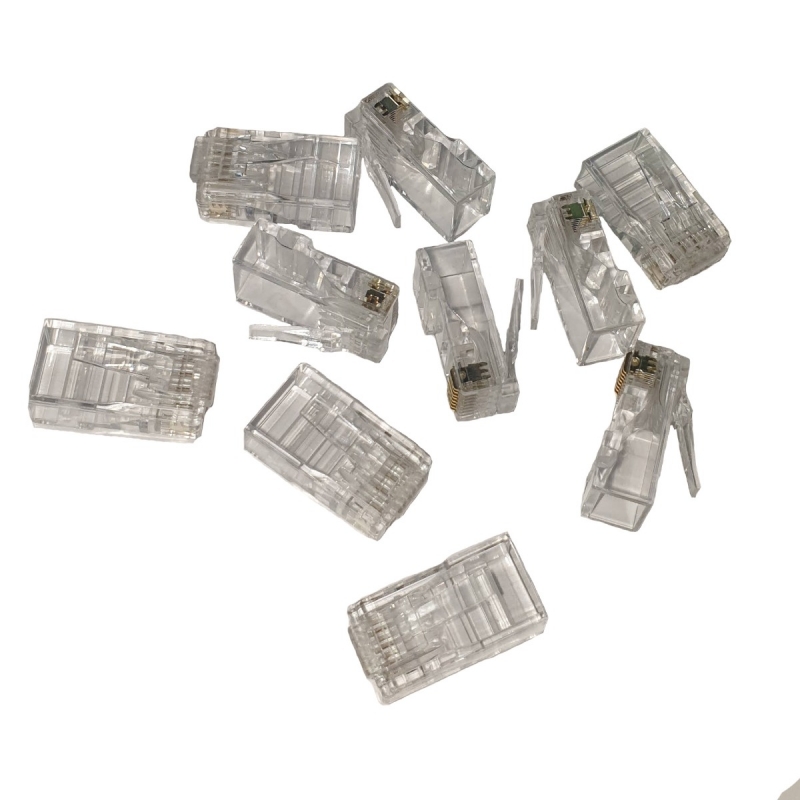

Cat 6 8 Position RJ45 One-Piece Modular Crimp Plug | Solid | 10 Pack
This Cat-6 RJ45 8-position one-piece modular crimp plug is designed for solid core category 6 patch cable. The one-piece design can be used with almost any solid modular RJ45 crimp tool.
FEATURES
50μ gold plated contacts
8P8C
Suitable for 23AWG ~ 26AWG wire
Insulation resistance: 500MΩ
Contact resistance: 20mΩ MAX
Operating ambient temperature:40°C ~ 70°C
Strain Relief: 20 pounds min
Durability: 1200 mating cycles
Pack of 10 pieces
MATERIALS
Housing: Polycarbonate, UL94V
Colour: Transparent
Contact blade: Copper alloy
Gold plating: 50μ
WARRANTY
3-years limited warranty
This Cat-6 RJ45 8-position one-piece modular crimp plug is designed for solid core category 6 patch cable. The one-piece design can be used with almost any solid modular RJ45 crimp tool.
FEATURES
50μ gold plated contacts
8P8C
Suitable for 23AWG ~ 26AWG wire
Insulation resistance: 500MΩ
Contact resistance: 20mΩ MAX
Operating ambient temperature:40°C ~ 70°C
Strain Relief: 20 pounds min
Durability: 1200 mating cycles
Pack of 10 pieces
MATERIALS
Housing: Polycarbonate, UL94V
Colour: Transparent
Contact blade: Copper alloy
Gold plating: 50μ
WARRANTY
3-years limited warranty
| SKU | 005.002.0035 |
|---|---|
| Colour | Clear |
| Connector Type | RJ45 Male |
| Package | Pack of 10 |
| Warranty | 3 Years |
Cat 6 8 Position RJ45 One-Piece Modular Crimp Plug | Solid | 10 Pack
