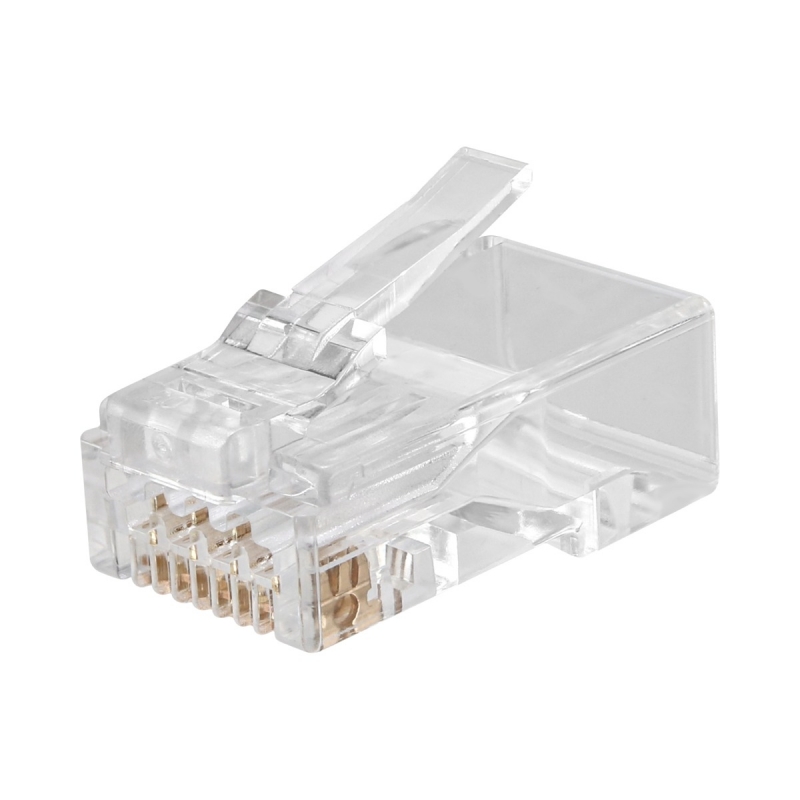

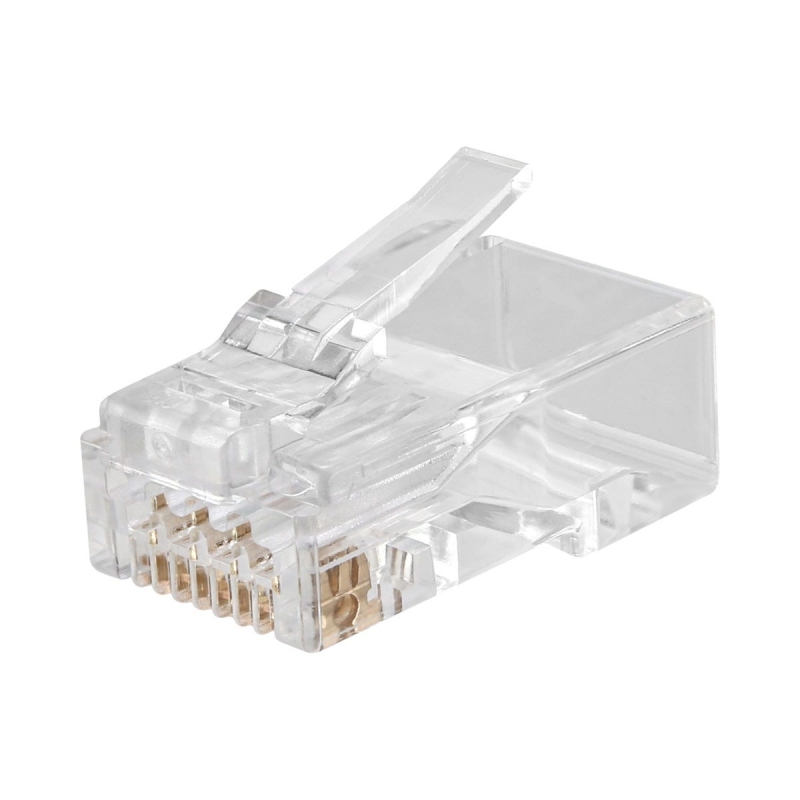

RJ45 8P8C CAT 6A UTP One-Piece Crimp Plug 4Up 4Down- Solid | 100 Pack 005.002.0071
RJ45 8P8C CAT 6A UTP One-Piece Crimp Plug 4Up 4Down- Solid | 100 Pack
*** Requires 001.006.0530 Multi-Function Crimper***
The Cat.6 UTP Pass Through Modular Plug (4 Up 4 Down) is a game-changer for any high-power application. Certified by UL and FORCE, this connector is designed to support PoE++ (4PPoE) applications, delivering up to 90 watts of power through a single Category 6 cable. Whether you’re powering a laptop, IP camera, or wireless access point, this connector ensures both data and power can be transmitted efficiently over long distances. Its patented 3-prong pins provide universal compatibility with stranded and solid cables, helping to reduce inventory costs.
Unleash the Power of PoE++
This connector maximises your PoE++ setup by delivering high bandwidth and high power, making it ideal for powering devices that are difficult to reach or far from a power source. Whether it’s a VoIP phone or a WAP, the Cat.6 UTP Pass Through Modular Plug ensures reliable performance.
Built to Last
Made with durable polycarbonate housing and copper alloy contact blades, this connector is engineered to withstand the rigours of both commercial and industrial environments. With a mating cycle rating of 1,200 cycles and a plug retention force of at least 20 pounds, it’s built for longevity.
FEATURES
- UL and FORCE certified
- 90-watt PoE++ pass through
- Patented 3-prong pins for universal compatibility
- Supports both stranded and solid cables
- High bandwidth and high power
- Transparent polycarbonate housing
- Durable copper alloy contact blades
SPECIFICATIONS
- Housing: Polycarbonate
- Colour: Transparent
- Contact Blades: Copper alloy
- Plug Retention Force: 20pound min
- Mating Cycles: 1,200 cycles
- UL Applications: 250VAC max. at 2Amps
- Dielectric Withstanding Voltage: 100VAC for 60sec
- Insulation Resistance: 500MΩ
- Contact Resistance: 20mΩ
- Storage Temperature: < 35°C
- Operating Temperature: -40°C to 70°C
- Max. Relative Humidity: < 70%
- Contact Compatibility: 23 to 26 AWG solid and stranded cables
WARRANTY
3-years limited warranty
| SKU | 005.002.0071 |
|---|---|
| Brand | 4Cabling |
| Manufacturer Part# | 005.002.0071 |
| Colour | Clear |
| z - Connector Type | RJ45 Male |
| Cable Category | CAT6A |
| Package | Pack of 100 |
| Warranty | 3 Years |
