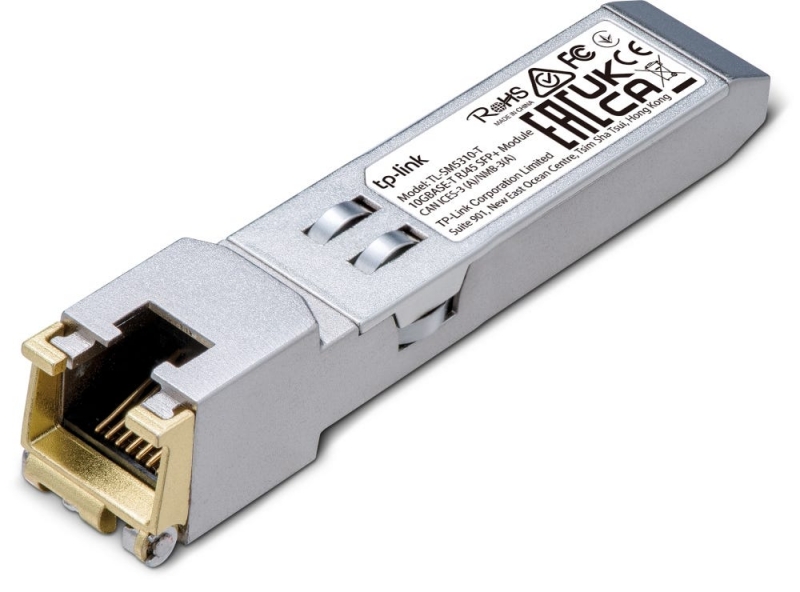

The TL-SM5310-T is a high-performance 10G BASE-T RJ45 SFP+ module designed for seamless integration in host systems. This module supports 10G BASE-T operation, making it ideal for high-speed data transmission. With its hot-pluggable SFP+ footprint features, the TL-SM5310-T ensures ease of installation and maintenance.

The module supports a variety of data rates and distances, including 100BASE-TX with UTP CAT5 or above (max. 100m), 10GBASE-T with UTP CAT6A or above (max. 30m), and 1000BASE-T/2.5GBASE-T/5GBASE-T with UTP CAT5E or above (max. 100m). It also includes features like TX Disable function and DDM (Digital Diagnostics Monitoring) for temperature and voltage.

Designed to operate within a commercial temperature range of 0-70°C, the TL-SM5310-T complies with IEEE standards 802.3, 802.3ab, 802.3bz, and 802.3an, as well as RoHS regulations. Its fully metallic enclosure ensures low EMI, contributing to reliable performance in various environments. Additionally, the module is engineered for low power dissipation, making it an efficient choice for network deployments.

FEATURES
Support 10G BASE-T Operation: Enables high-speed data transmission
Support TX Disable function: Allows easy management of the module's operation
Support DDM (Temperature and Voltage): Provides real-time monitoring of the module's performance
Hot-Pluggable SFP+ Footprint Features: Ensures ease of installation and maintenance
Commercial Product Operating Temperature Range: 0-70°C
Fully Metallic Enclosure: Reduces EMI for stable performance
Low Power Dissipation: Enhances energy efficiency
SPECIFICATIONS
Data Rate: 10.3125Gbps
Distance: Up to 100m for 100BASE-TX and up to 30m for 10GBASE-T
Operating Temperature: 0-70°C
Storage Temperature: -40-85°C
Supply Current: 750mA
Input Voltage Range: 3.2-3.4V
Enclosure: Metal
Compliances: IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an and RoHS
CONTENTS
TL-SM5310-T Module
User Manual
WARRANTY

3-Year Manufacturer's Warranty
