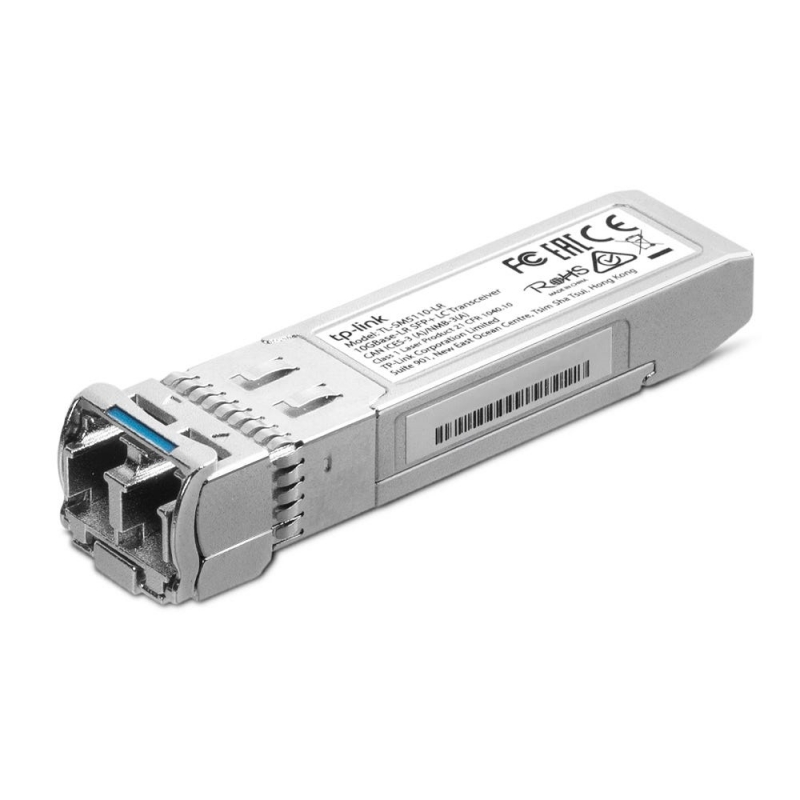

Upgrade your network performance with the TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver, designed to deliver lightning-fast 10 Gbps speeds over distances up to 10 km. Ideal for data centres, enterprise networks, and high-speed communication needs, this transceiver ensures seamless and reliable connectivity. With its compatibility with SFP+ MSA, IEEE 802.3ae, and SFF-8472 standards, it integrates effortlessly into your existing infrastructure. Plus, the Digital Diagnostic Monitoring (DDM) feature provides real-time monitoring of critical parameters, ensuring optimal operation and easy maintenance.

Experience the benefits of enhanced network performance with the TL-SM5110-LR. Its hot-swappable design allows for convenient installation and maintenance without disrupting network traffic. The advanced transmitter and receiver capabilities ensure low power consumption and high data integrity, making it a cost-effective solution for long-range, high-speed networking.

Whether you're upgrading an existing network or deploying a new one, the TP-Link TL-SM5110-LR provides the performance, reliability, and ease of use you need to stay ahead in today's fast-paced digital world.

FEATURES
Single-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
SPECIFICATIONS
Transmission Speed: Up to 10.3125Gbps
Transmission Distance: Up to 10km
Standards and Protocols: IEEE 802.3ae, SFF-8472
Power Supply: 3.3V
Operating Temperature: 0°C to 70°C
Output Power: -8.2 to 0.5dBm
Center Wavelength: 1290nm to 1310nm
Max. Input Power (Saturation): 1dBm
Min. Input Power (Sensitivity): -14.6dBm
Dimensions (WDH): 67.413.7513.8mm
Safety & Emission: FCC, CE
CONTENTS
10G SFP+ Module TL-SM5110-LR
Installation Guide
WARRANTY

3-Year Manufacturer's Warranty
