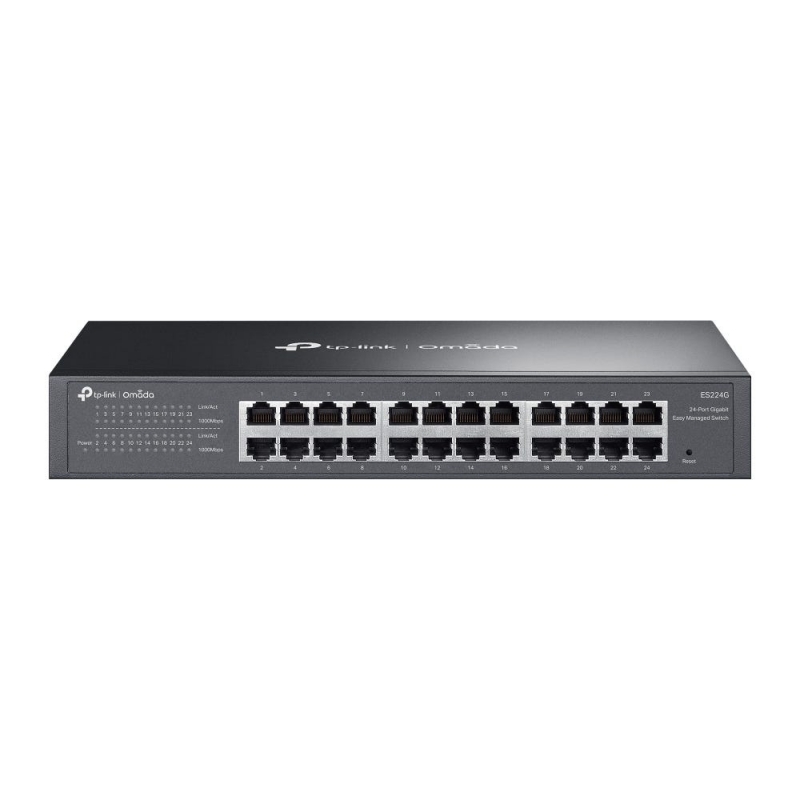

The TP-Link ES224G Omada 24-Port Gigabit Easy Managed Switch is a professional networking solution designed to enhance connectivity for small and medium-sized businesses. It features 24x 10/100/1000Mbps RJ45 ports that provide high-speed data transfer for bandwidth-intensive applications. This switch bridges the gap between unmanaged and fully managed devices, offering essential Layer 2 features and easier management at a cost-effective price point.

Integrated into the Omada Software Defined Networking (SDN) platform, the ES224G supports centralised cloud management via the web or the Omada app. It is compatible with Omada Cloud Essentials, allowing for Zero-Touch Provisioning (ZTP) and remote monitoring without the need for additional hardware controllers. This makes network deployment and maintenance significantly simpler and more efficient for IT administrators.

Engineered for reliability and silent operation, the ES224G utilises a fanless design encased in a durable metal housing. This ensures it remains quiet, making it suitable for noise-sensitive environments such as libraries, offices, and retail spaces. The device is rack-mountable and comes with a comprehensive set of mounting brackets, allowing for flexible installation in standard 19-inch racks or on desktops.

Security and performance are optimised with advanced software features including VLAN support for traffic separation, QoS with 8 priority queues for smooth voice and video transmission, and IGMP Snooping for efficient multicast stream delivery. Additionally, it includes Automatic Loop Prevention and Storm Control to maintain network stability. This switch delivers a robust switching capacity of 48Gbps, ensuring your network handles peak traffic loads with ease.

FEATURES
24x 10/100/1000Mbps RJ45 Ports for high-speed connectivity
Integrated into Omada SDN for centralised cloud management
Fanless design ensures silent operation
Supports Omada Cloud Essentials and Zero-Touch Provisioning
VLAN support (802.1Q, Port-based, MTU) for network security
QoS with 8 priority queues and WRR for traffic prioritisation
IGMP Snooping (v1/v2/v3) for optimised multicast applications
Automatic Loop Prevention and Storm Control
Static Link Aggregation for increased bandwidth
Durable metal casing with rack-mount kit included
SPECIFICATIONS
Product Code: ES224G
Interface: 24x 10/100/1000Mbps RJ45 Ports
Switching Capacity: 48Gbps
Packet Forwarding Rate: 35.7Mpps
Fan Quantity: Fanless
Dimensions (W x D x H): 294mm x 140mm x 44mm
Power Supply: 100-240V AC, 50/60Hz
Mac Address Table: 8K
Packet Buffer Memory: 4Mbit
Jumbo Frame: 15KB
Operating Temperature: -5°C to 50°C
Installation: Desktop / Rack-mountable
Certification: CE, FCC, RoHS
WARRANTY

5-Year Limited Warranty
