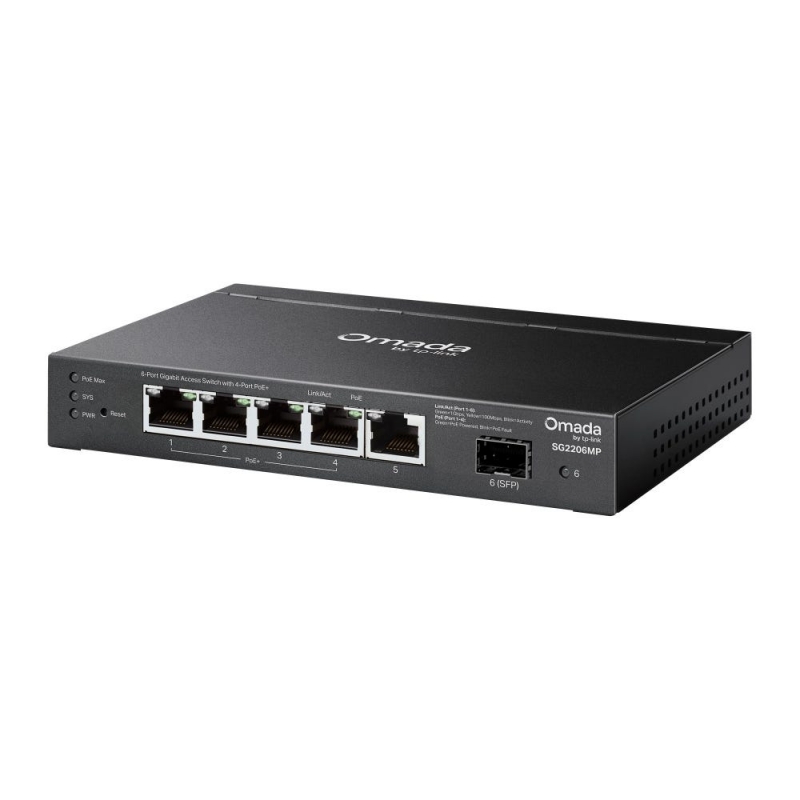

The TP-Link Omada SG2206MP is a high-performance 6-Port Gigabit Access Switch designed to power and connect your business network with efficiency. Featuring four PoE+ ports with a 63W total power budget, it simplifies the deployment of IP cameras, access points, and VoIP phones by delivering data and power over a single cable. The inclusion of an additional Gigabit RJ45 port and a dedicated SFP slot ensures flexible high-speed uplinks for diverse networking environments.

Equipped with advanced L2+ features like Static Routing, this switch optimises internal traffic and enhances network efficiency. Robust security protocols, including IP-MAC-Port Binding, ACLs, and 802.1X authentication, provide enterprise-grade protection against common network threats. Its fanless design ensures silent operation, making it an ideal choice for noise-sensitive environments like offices, classrooms, or retail spaces.

Integration with the Omada Software Defined Networking (SDN) platform offers 100% centralised cloud management. This allows for seamless monitoring and configuration via the web or the Omada app, supporting features like Zero-Touch Provisioning and intelligent monitoring. Whether managed through the cloud or as a standalone device via CLI or SNMP, the SG2206MP provides the scalability and reliability required for modern professional networks.

Housed in a durable metal casing, the SG2206MP is built for longevity and supports both desktop and wall-mount installations. With energy-efficient technology and a high packet forwarding rate of 8.93Mpps, it delivers consistent performance without high power overheads. This switch is the perfect compact solution for businesses seeking a powerful, manageable, and silent networking hub.

FEATURES
4x Gigabit PoE+ ports and 1x Gigabit RJ45 port
1x Gigabit SFP slot for high-speed fiber uplinks
63W total PoE budget with up to 30W per port
Integrated into Omada SDN for centralised cloud management
Static Routing for efficient internal traffic handling
Fanless design for silent, distraction-free operation
Durable metal casing with desktop or wall-mount support
Advanced security features including ACL, 802.1X, and Storm Control
SPECIFICATIONS
Interface: 4x 10/100/1000Mbps PoE+ RJ45 Ports, 1x 10/100/1000Mbps RJ45 Port, 1x Gigabit SFP Port
PoE Standard: 802.3af/at
PoE Power Budget: 63W
Switching Capacity: 12Gbps
Packet Forwarding Rate: 8.93Mpps
MAC Address Table: 8K
Packet Buffer: 4.1Mbit
Jumbo Frame: 9KB
Power Supply: 53.5VDC/1.31A
Max Power Consumption: 73.7W (with 63W PD connected)
Dimensions: 158x100.7x25.4mm
Mounting: Desktop or Wall Mount
Operating Temperature: -5°C to 40°C
Surge Protection: 6kV (Ethernet ports)
Certifications: CE, FCC, RoHS
WARRANTY

1-Year Limited Warranty
