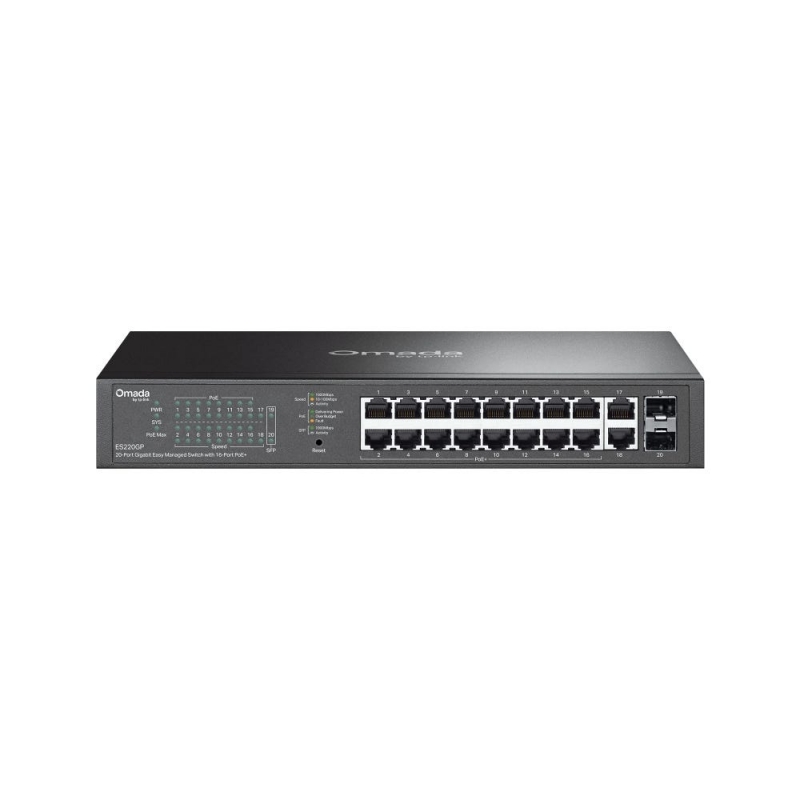

Expand your business network capabilities with the TP-Link ES220GP Omada 20-Port Gigabit Easy Managed Switch. Designed for small to medium-sized businesses and surveillance systems, this robust switch features 16 PoE+ ports that simplify the deployment of IP cameras, access points, and IP phones. With a generous 150W power budget and up to 30W per port, it eliminates the need for extra power cabling, ensuring a clean and cost-effective installation.

Seamlessly integrate this switch into your existing network infrastructure using the Omada Software Defined Networking (SDN) platform. The ES220GP supports centralised cloud management via the web or the Omada app, allowing you to monitor and control your network from anywhere. Essential features like automatic loop prevention and voice VLAN ensure your data traffic remains stable and efficient, while the fanless metal casing provides silent operation suitable for noise-sensitive environments.

Security and performance are prioritised with advanced functions tailored for surveillance networking. The switch offers port isolation to secure traffic and PoE auto-recovery to automatically reboot unresponsive power-over-ethernet devices, reducing maintenance downtime. With two dedicated Gigabit SFP slots, you gain flexible fiber connectivity options for uplinking to other switches or spanning longer distances across your facility.

Built to withstand the demands of daily operation, the ES220GP is housed in a durable metal casing that supports both desktop and rackmount installation. Its plug-and-play simplicity combined with powerful management features makes it an ideal choice for businesses seeking a reliable, high-performance networking solution that can grow with their needs.

FEATURES
16 PoE+ ports (802.3af/at) with 150W total power budget
Integration with Omada SDN for centralised cloud management
2 Gigabit SFP slots for flexible fiber uplinking
Intelligent PoE Auto Recovery for unresponsive devices
Fanless design for silent desktop or rackmount operation
Automatic Loop Prevention and Voice VLAN support
Robust metal casing for durability
Plug-and-play connectivity with easy management options
SPECIFICATIONS
Interface: 18x 10/100/1000Mbps RJ45 Ports, 2x Gigabit SFP Slots
PoE Standards: 802.3af/at compliant
PoE Ports: 16 Ports (Ports 1-16)
Total PoE Power Budget: 150W
Max PoE Power Per Port: 30W
Switching Capacity: 40Gbps
Packet Forwarding Rate: 29.76Mpps
MAC Address Table: 8K
Jumbo Frame: 15KB
Packet Buffer Memory: 4Mbit
Fan Quantity: Fanless
Power Supply: 100-240V AC, 50/60Hz
Dimensions (W x D x H): 294mm x 180mm x 44mm
Mounting: Desktop/Rackmount
Max Power Consumption: 14.01W (no PD connected), 176.87W (with 150W PD connected)
Operating Temperature: -5°C to 40°C
Certification: CE, FCC, RoHS
WARRANTY

5-Year Limited Warranty
