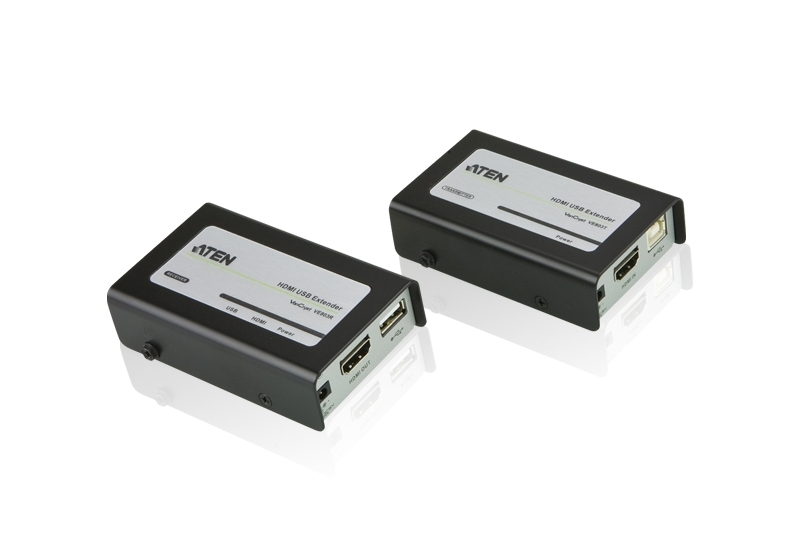

The VE803 HDMI & USB Extender is a high-performance solution designed to extend HDMI signals up to 60m from the source using two CAT5E, CAT6 or CAT6A cables. It offers the flexibility to send 1080i signals up to 60m and 1080p signals up to 40m, making it ideal for professional AV installations and home theatre setups. This unit ensures superior video quality with support for a wide range of resolutions including 1080p, 1920x1200 (WUXGA), and various VGA formats.

Equipped with integrated USB connectors, the VE803 allows you to extend USB devices between units seamlessly. This feature is particularly beneficial for touch panel control, enabling users to control a local HDMI source from a remote display or vice-versa. The transparent USB support ensures compatibility with all USB 2.0 full-speed devices up to 12Mbps, providing a versatile interface for various peripherals.

The extender features an 8-segment equaliser adjustment switch to optimise display quality based on distance and environment. It is fully HDCP compatible and supports advanced audio formats such as Dolby True HD and DTS HD Master Audio. With built-in 8KV/15KV ESD protection, the VE803 is built for durability and reliability in demanding environments.

IMPORTANT INSTALLATION NOTES

Power Requirement: This system requires a power supply at both the Transmitter and Receiver ends. Ensure power outlets are available at both locations.
Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability: and 4K performance approaching the max rated distance, we strongly recommend using Cat6A Shielded Patch Cords (004.100.xxxx) or SLD.C6ASFTP.XXX. For shorter distances, SLD.C6UTP.XXXX or SLD.C6AUUTP.XXX terminated to T568B is suitable.

FEATURES
Extends 1080p by 40m; extend 1080i by 60m
Supports USB touch panel control
8-segment equalisation adjustment switch
Transparent USB 2.0 support (up to 12Mbps)
Dolby True HD and DTS HD Master Audio support
Built-in 8KV/15KV ESD protection
HDMI (3D, Deep Colour) and HDCP compatible
Wiring Standard Under UTP: T568B Only
Wiring Standard Under S/FTP: Either T568A or T568B
Recommended Patch Lead: CAT6A Shielded Only (004.100.xxxx range)
SPECIFICATIONS
Input: 1 x HDMI Type A Female (Local), 1 x USB Type B Female (Local)
Output: 1 x HDMI Type A Female (Remote), 1 x USB Type A Female (Remote)
Unit to Unit: 2 x RJ45 Female
Max. Video Resolution: 1080p at 40m; 1080i at 60m
Signalling Rate: Up to 2.25Gbits
USB Support: USB 2.0 Full Speed (12Mbps)
Equalisation: 8-segment switch
ESD Protection: 8KV Contact / 15KV Air
Power Supply: DC 5.3V, 2.3W (Local), DC 5.3V, 4.2W (Remote)
Housing: Metal
Dimensions: 9.00cm x 5.50cm x 2.40cm
WARRANTY

1-Year Limited Warranty
