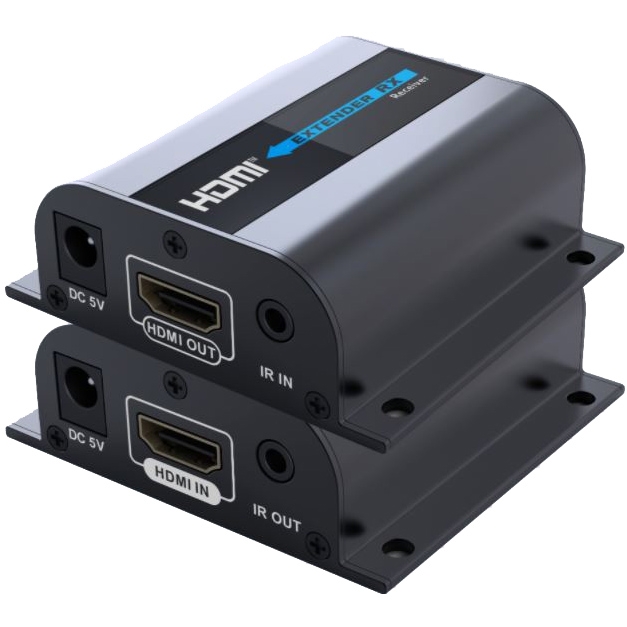

The HDMI Extender Over Cat 6/6A 50 Meters provides a high-performance solution for extending uncompressed 1080p high-definition video and audio signals. By using a single Cat6 or higher network cable, this system overcomes the restrictive distance limitations of standard HDMI cables, allowing for stable and cost-effective installations across residential or commercial environments. The zero-latency transmission ensures your media remains perfectly synchronised without any lag.

Integrated IR passback technology allows you to maintain full control over your source device, such as a Blu-ray player or media hub, from the remote display location. This makes it an ideal choice for digital signage, home theatres, and boardroom setups where the source equipment is hidden away. The plug-and-play design means no complex software or driver installation is required for operation.

Built for reliability, the unit features an auto-adjusting mechanism that automatically matches the signal strength to the specific length of the network cable used. This ensures a lossless HDMI transmission regardless of whether your run is 10meters or 50meters. The compact and pure hardware-based design provides a robust, maintenance-free connection for professional AV projects.

IMPORTANT INSTALLATION NOTES

Power Requirement: This system requires a power supply at both the Transmitter and Receiver ends. Ensure power outlets are available at both locations.
Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability: and 4K performance approaching the max rated distance, we strongly recommend using Cat6A Shielded Patch Cords (004.100.xxxx) or SLD.C6ASFTP.XXX. For shorter distances, SLD.C6UTP.XXXX or SLD.C6AUUTP.XXX terminated to T568B is suitable.

FEATURES
Transmit 1080p@60Hz signals up to 50meters
Uncompressed and zero-latency video transmission
IR passback for remote control of source devices
Plug-and-play installation with no software required
Built-in EDID passback for maximum display compatibility
Lossless HDMI audio and video quality
Auto-adjusting signal strength based on cable length
Pure hardware transmission for long-term stability
Wiring Standard Under UTP: T568B Only
Wiring Standard Under S/FTP: Either T568A or T568B
Recommended Patch Lead: CAT6A Shielded Only (004.100.xxxx range)
SPECIFICATIONS
Maximum Resolution: 1080p@60Hz
Transmission Distance: Up to 50meters (Cat6/6A)
Input/Output Connectors: HDMI Type-A
Network Connector: RJ45
Latency: Zero Latency
EDID Support: Built-in passback
Power Supply: 5VDC (Powered from TX side)
Audio Formats: Lossless uncompressed audio
Operating Temperature: 0°C to 60°C
WARRANTY

1-Year Limited Warranty
