The KVM Console Extender Over Cat6/6A 70m with HDMI® Loop-Through is an advanced solution for transmitting 1080p AV signals and USB data for keyboard and mouse control over long distances. By using a single CAT6 or higher cable, this extender overcomes standard HDMI distance limitations, providing a stable and cost-effective setup for traffic control centres, medical institutions, and professional video editing suites. It features automatic parameter adjustment to match different network cables, ensuring the best possible display performance with zero latency.

This versatile system supports remote control for PCs, KVMs, and servers, making it an essential tool for real-time monitoring and management in advertising, conference systems, and home theatres. The transmitter unit includes an HDMI loop-out port, allowing for a local display alongside the remote receiver. Integrated 3.5mm L/R jacks provide convenient audio output for headsets or speakers at the receiver end, enhancing the user experience in various environments.

Designed for reliability in demanding applications, the units are equipped with built-in lightning, surge, and ESD protection to safeguard your hardware against electrical interference. The point-to-point extender design ensures a direct, high-quality connection up to 70m. With EDID passthrough support, the system maintains consistent communication between the source and the display, ensuring the correct resolution and settings are always applied for a seamless plug-and-play experience.

IMPORTANT INSTALLATION NOTES

Power Requirement: This system requires a power supply at both the Transmitter and Receiver ends. Ensure power outlets are available at both locations.
Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability: and 4K performance approaching the max rated distance, we strongly recommend using Cat6A Shielded Patch Cords (004.100.xxxx) or SLD.C6ASFTP.XXX. For shorter distances, SLD.C6UTP.XXXX or SLD.C6AUUTP.XXX terminated to T568B is suitable.

FEATURES
Point to point extender with Zero Latency
Supports resolution of up to 1080p@60Hz
Transmission distance of up to 70meters via CAT6/6A cable
Built-in 3.5mm L/R jack for headset/Speaker

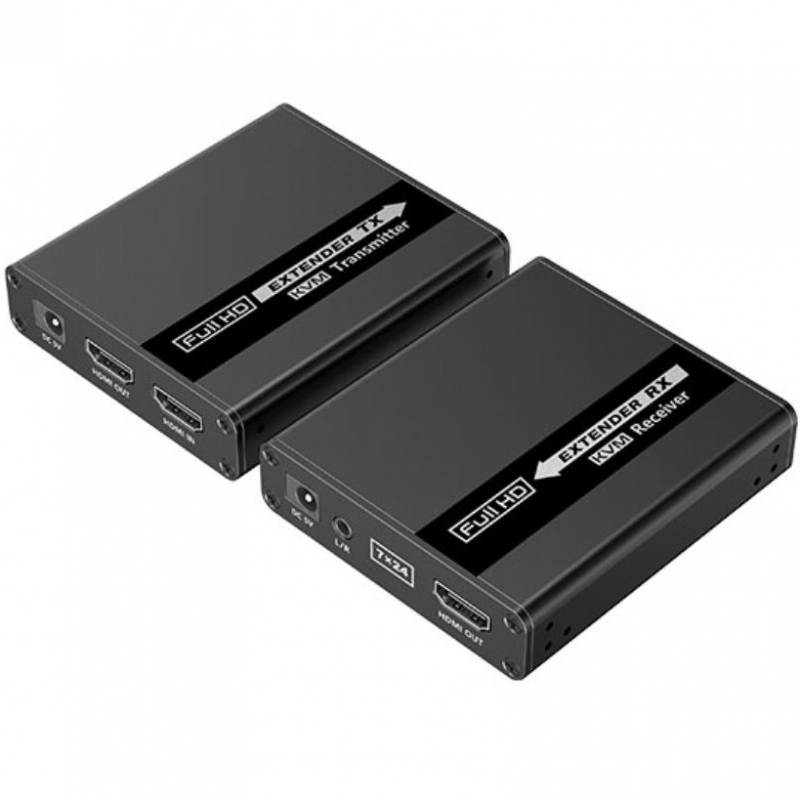

Includes a transmitter unit (TX) and a receiver unit (RX), working as a pair
HDMI loop out to allow local display at the source
Supports EDID Passthrough for seamless display compatibility
Built-in Lightning, Surge and ESD Protection
Wiring Standard Under UTP: T568B Only
Wiring Standard Under S/FTP: Either T568A or T568B
Recommended Patch Lead: CAT6A Shielded Only (004.100.xxxx range)
SPECIFICATIONS
Transmission Distance: Up to 70m via CAT6/6A
Maximum Resolution: 1080p@60Hz
HDMI Version: HDMI 1.3 (Compatible with HDMI 1.4)
HDCP Version: HDCP 1.4
USB Version: USB 1.1
Audio Support: L/R Stereo Audio via 3.5mm Jack
Power Supply: DC 5V/1A at both TX and RX
Protection: Lightning, Surge, and ESD Protection
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Humidity: 0 to 90% RH (no condensation)

WARRANTY

1-Year Limited Warranty
