This HDMI® Extender is a professional-grade solution designed to transmit high-definition 1080p@60Hz AV signals over distances up to 50m using a single Cat6 or higher network cable. By utilizing cost-effective network cabling, it overcomes the inherent distance limitations of standard HDMI cables, ensuring your AV projects remain stable and budget-friendly without sacrificing signal integrity.

The system is engineered for uncompressed, zero-latency transmission, providing a seamless viewing experience. The inclusion of IR passback functionality allows users to conveniently control source devices, such as Blu-ray players or media boxes, directly from the display side. This "plug and play" hardware-based solution requires no software installation, making it ideal for both residential and commercial installations.

Efficiency is a core feature of this extender, which utilizes Power Over Cable (POC) technology. This allows the entire system to be powered from the Transmitter (TX) side only, eliminating the need for a power outlet at the Receiver (RX) end. The built-in EDID passback function further enhances compatibility by ensuring the source device outputs the optimal resolution for the connected display.

IMPORTANT INSTALLATION NOTES

Power Requirement: This unit features POC (Power Over Copper). Only one power supply is required to power the entire system.
Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability and 4K performance approaching the max rated distance, we strongly recommend using Cat6A Shielded Patch Cords (004.100.xxxx) or SLD.C6ASFTP.XXX. For shorter distances, SLD.C6UTP.XXXX or SLD.C6AUUTP.XXX terminated to T568B is suitable.

FEATURES
Uncompressed and zero latency
Plug and play, without software installation
Supports resolution of up to 1080p@60Hz
Transmission distance of up to 50m via CAT6/6A cable
Built-in EDID pass back function to get better compatibility

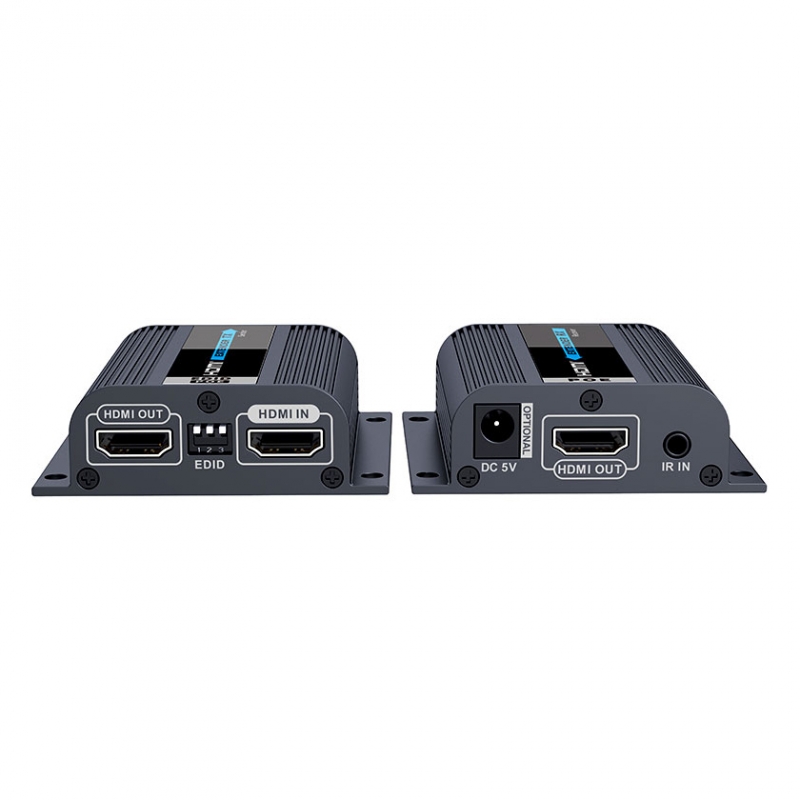

Includes a transmitter unit (TX) and a receiver unit (RX), working as a pair
Support POT and IR passback for easy source control
Pure hardware transmission with auto-adjusting cable matching
HDMI lossless transmission
Powered from the transmit (TX) side only
Wiring Standard Under UTP: T568B Only
Wiring Standard Under S/FTP: Either T568A or T568B
Recommended Patch Lead: CAT6A Shielded Only

SPECIFICATIONS
Interface: HDMI 1.3, HDCP 1.4
Maximum Resolution: 1080p@60Hz
Transmission Distance: 50m (Cat6/6A)
Power Supply: DC 5V/1A (TX Side Only)
Transmission Type: Uncompressed Lossless
Control: IR Passback (20-60KHz)
Housing: Metal Enclosure

WARRANTY

1-Year Limited Warranty
