This high-performance 4K KVM Console Extender provides a seamless solution for remote server management and real-time monitoring. By transmitting HDMI 4K@60Hz AV signals alongside USB data for keyboard and mouse control, it allows users to operate PCs or KVM switches from up to 70m away using a single CAT6/6A cable. This makes it an essential tool for traffic control centres, medical institutions, and professional video editing suites where hardware needs to be secured away from the operator's desk.

Designed for mission-critical reliability, the system features zero-latency transmission to ensure instantaneous peripheral response. The inclusion of an HDMI loop-through on the transmitter unit allows for local monitoring, ensuring that the source signal can be viewed at the rack while being extended to a remote station. Encased in a durable metal enclosure, the units include built-in lightning, surge, and ESD protection to safeguard your expensive AV equipment against electrical interference.

The extender simplifies installation with Power over Cable (PoC) technology, requiring only a single power adapter at the transmitter side to power both units. This reduces cable clutter and the need for additional power outlets at the receiver end. Its plug-and-play design is tailored for diverse environments, including conference systems and high-end home theatres, providing a robust and flexible link for ultra-high-definition content delivery.

IMPORTANT INSTALLATION NOTES

Power Requirement: This unit features POC (Power Over Copper). Only one power supply is required to power the entire system.
Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability: and 4K performance approaching the max rated distance, we strongly recommend using Cat6A Shielded Patch Cords (004.100.xxxx) or SLD.C6ASFTP.XXX. For shorter distances, SLD.C6UTP.XXXX or SLD.C6AUUTP.XXX terminated to T568B is suitable.

FEATURES
Point to point extender
Zero Latency
Supports resolution of up to 4K@60Hz UHD
Transmission distance of up to 70m via CAT6/6A cable

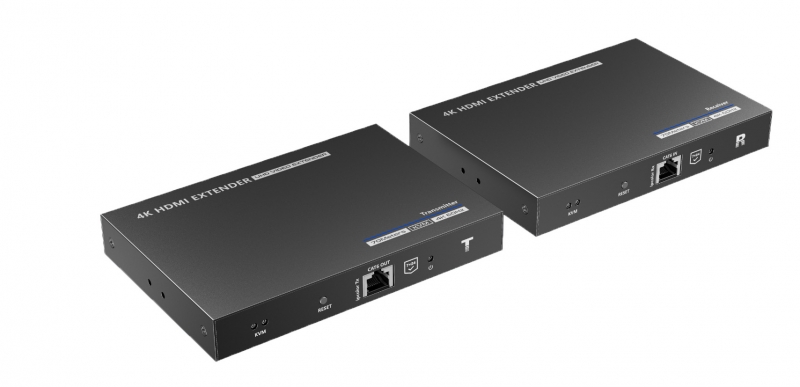

Includes a transmitter unit (TX) and a receiver unit (RX), working as a pair
Supports PoC (Power over Cable) so the Receiver can be powered via the same network cable used for the data transmission
Metal enclosure
HDMI loop out to allow local display
Built-in Lightning, Surge, and ESD Protection
Includes 1 power adapter (for transmitter)
Wiring Standard Under UTP: T568B Only
Wiring Standard Under S/FTP: Either T568A or T568B
Recommended Patch Lead: CAT6A Shielded Only (004.100.xxxx range)
SPECIFICATIONS
Resolution Support: Up to 4K@60Hz UHD
Transmission Distance: 70m (CAT6 or higher)
KVM Support: USB Keyboard and Mouse
Audio Support: S/PDIF
Transmission Protocol: Point to point
Latency: Zero Latency
Power: PoC (Power over Cable)
Protection: Lightning, Surge, and ESD Protection
Construction: Metal Enclosure
Input/Output (TX): HDMI In, HDMI Loop Out, USB Host, RJ45 Out, S/PDIF Out
Input/Output (RX): RJ45 In, HDMI Out, USB Devices (x2)
WARRANTY

1-year limited warranty
