Experience seamless HD video transmission with the KVM 1080p@60Hz HDMI Extender over CAT6. This advanced point-to-point extender offers zero latency and supports resolutions up to 1080p@60Hz, ensuring your visuals remain crisp and perfectly synchronised. With a transmission distance of up to 70meters via CAT6/6A cables, you can extend HDMI signals across large sites without compromising on signal integrity or quality.

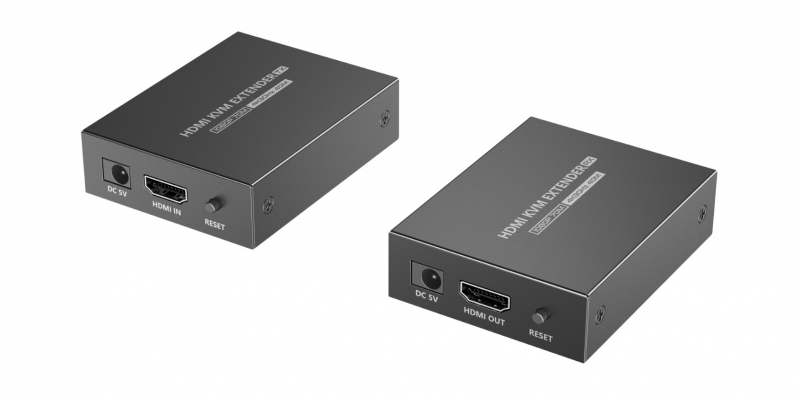

The system includes a transmitter unit (TX) and a receiver unit (RX) housed in sturdy metal enclosures for maximum durability. Designed for high-stakes environments, it features built-in lightning, surge, and ESD protection to safeguard your equipment from electrical fluctuations. KVM control support makes this extender an ideal choice for real-time management in traffic control centres, medical institutions, and security monitoring hubs.

Equipped with adaptive technology, the unit automatically adjusts parameters to match different network cable lengths, ensuring the best possible display performance. High-performance digital chips provide a reliable and stable signal, even over long distances. Upgrade your video transmission capabilities today with this robust KVM solution and enjoy uninterrupted, high-quality visuals with full remote console control.

IMPORTANT INSTALLATION NOTES

Power Requirement: This system requires a power supply at both the Transmitter and Receiver ends. Ensure power outlets are available at both locations.
Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability: and 4K performance approaching the max rated distance, we strongly recommend using Cat6A Shielded Patch Cords (004.100.xxxx) or SLD.C6ASFTP.XXX. For shorter distances, SLD.C6UTP.XXXX or SLD.C6AUUTP.XXX terminated to T568B is suitable.

FEATURES
Point-to-point HDMI extension with zero latency
Supports high-definition resolutions up to 1080p@60Hz
Extended transmission distance up to 70meters via CAT6/6A
KVM support for remote keyboard and mouse control
Robust metal enclosure for professional durability
Built-in Lightning, Surge, and ESD protection
Adaptive technology for automatic cable length adjustment
Includes transmitter (TX) and receiver (RX) pair
Wiring Standard Under UTP: T568B Only
Wiring Standard Under S/FTP: Either T568A or T568B
Recommended Patch Lead: CAT6A Shielded Only (004.100.xxxx range)
SPECIFICATIONS
Maximum Resolution: 1080p@60Hz
Transmission Distance: Up to 70meters (CAT6/6A)
Wiring Standard: T568B Required
KVM Control: USB Keyboard and Mouse supported
Latency: Zero Latency
Protection: Lightning, Surge, and ESD Protection
Housing Material: Metal
Power Supply: Included adapters
HDMI Version: HDMI 1.3 compatible
HDCP Compliance: Yes
WARRANTY

1-year limited warranty
