Transform your audiovisual experience with this cutting-edge HDMI® Extender, delivering stunning 4K resolution at 60Hz. Utilising advanced ipcolour technology, it provides visually lossless compression that surpasses standard solutions, ensuring superior image quality without compression artefacts. This professional-grade system supports a transmission distance of up to 90m for 4K@60Hz content and up to 120m for 1080P@60Hz via CAT6/6A cabling, making it ideal for both expansive home theatres and commercial installations.

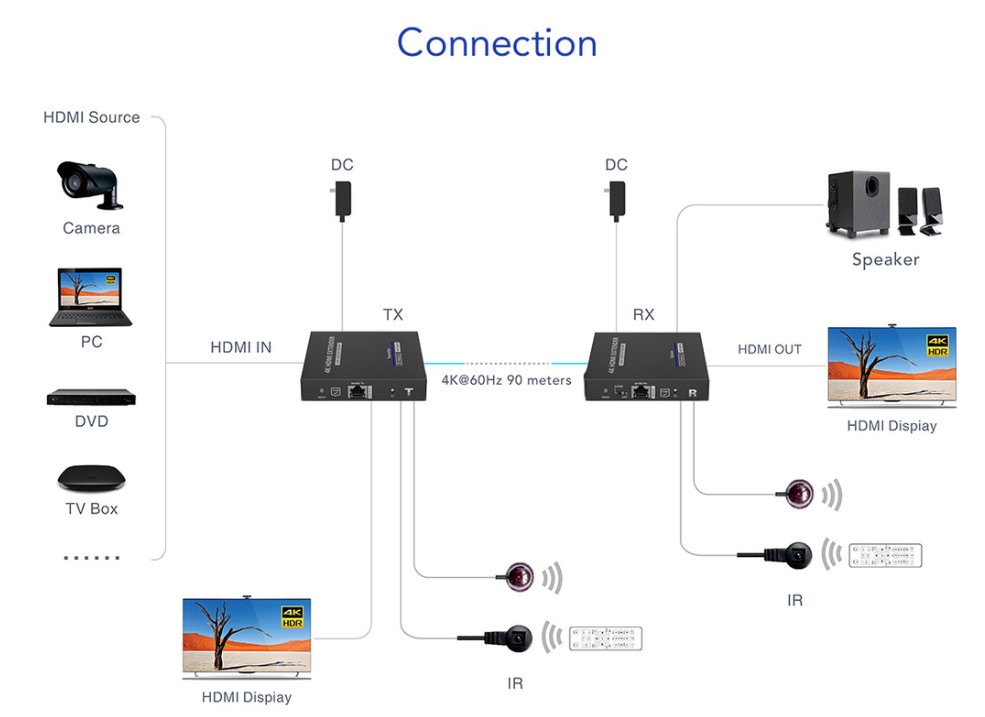

Experience zero latency and seamless synchronisation of audio and video signals. The unit supports bi-directional IR Passback, allowing you to control your source devices effortlessly from either the transmitter or receiver end. With an integrated HDMI loop out on the transmitter for a local display and S/PDIF digital audio output on the receiver for external sound systems, this extender offers maximum flexibility for complex AV setups.

Safety and durability are engineered into the design with a sturdy metal enclosure that protects internal components and aids heat dissipation. To safeguard your investment, the device features built-in Lightning, Surge, and ESD Protection against unexpected electrical disturbances. This ensures a long-lasting, reliable connection even in demanding environments.

IMPORTANT INSTALLATION NOTES

Power Requirement: This system requires a power supply at both the Transmitter and Receiver ends. Ensure power outlets are available at both locations.
Wiring Standard (Solid Cable): For UTP solid core cabling, T568B termination is mandatory. If using S/FTP shielded solid cable, either T568A or T568B is acceptable.
For maximum signal stability: and 4K performance approaching the max rated distance, we strongly recommend using Cat6A Shielded Patch Cords (004.100.xxxx) or SLD.C6ASFTP.XXX. For shorter distances, SLD.C6UTP.XXXX or SLD.C6AUUTP.XXX terminated to T568B is suitable.

FEATURES
Ipcolour Image technology for lossless compression
Point to point extender with Zero Latency
Supports resolution up to 4K@60Hz
Transmission distance up to 90m (4K@60Hz) or 120m (1080P@60Hz) via CAT6/6A
Bi-directional IR Passback
S/PDIF digital audio output
HDMI loop out for local display monitoring

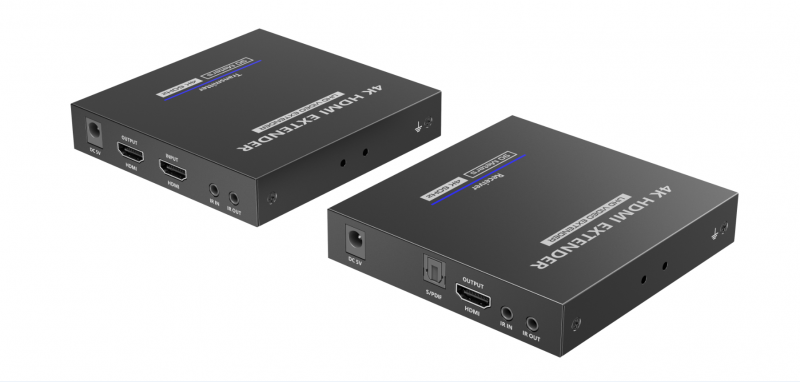

Includes Transmitter (TX) and Receiver (RX) pair
Sturdy metal enclosure with Lightning, Surge, and ESD Protection
Wiring Standard Under UTP: T568B Only
Wiring Standard Under S/FTP: Either T568A or T568B
Recommended Patch Lead: CAT6A Shielded Only (004.100.xxxx range)
SPECIFICATIONS
HDMI Version: HDMI 2.0
HDCP Version: HDCP 2.2
Resolution Support: Up to 3840x2160@60Hz
Transmission Media: CAT6/6A/7
Transmission Distance: 90m (4K@60Hz), 120m (1080P@60Hz)
Latency: Zero Latency
Audio Support: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH
IR Frequency: 20KHz-60KHz bi-directional
Input/Output (TX): 1x HDMI In, 1x HDMI Loop Out, 1x RJ45 Out, 1x IR In/Out
Input/Output (RX): 1x RJ45 In, 1x HDMI Out, 1x S/PDIF Out, 1x IR In/Out
Enclosure Material: Aluminium Alloy
Protection: Lightning, Surge, and ESD protection
WARRANTY

1-year limited warranty
