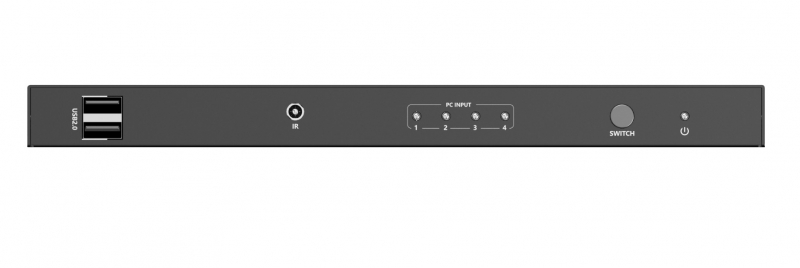

4K @60Hz 4 x 1 HDMI® KVM Switch

Upgrade your audiovisual setup with our 4K @60Hz 4 x 1 HDMI® KVM Switch. Experience the visual feast of 4K Ultra HD content with resolutions supported up to 4096x2160 @60Hz, immersing yourself in high-definition visuals that greatly enhance your viewing experience.

Our USB 2.0 KVM Switch allows you to conveniently control 4 computers using a single set of keyboard and mouse, sharing one monitor. Save workspace and improve work efficiency by easily and quickly switching between games, movies, TV shows, and other content without the need for frequent plugging and unplugging.

Take control of your setup with multiple control methods including the RS-232 port, remote control, and panel button. Compatible with a wide range of systems like Windows, Mac OS, Android, and Chrome, our KVM switch seamlessly integrates into your existing setup, providing versatile and hassle-free control.

Upgrade your audiovisual system today with our 4K @60Hz 4 x 1 HDMI® KVM Switch. Enjoy stunning visual quality, improved workspace efficiency, and seamless control. Elevate your audiovisual experience and order now to unlock the full potential of your setup.

FEATURES
4096x2160 @60Hz
HDR
4 HDMI In and 1 HDMI Out
USB2.0 KVM Switch
EDID Pass-through
Multiple Control Methods
Plug and Play
Metal enclosure
SPECIFICATIONS
Items Descriptions
HDMI version HDMI 2.0 (HDR, YUV4:4:4)
Compatible with HDCP 2.2, HDCP 1.4
HDMI interface 4 HDMI inputs, 1 HDMI output
Transmission rate 18Gbps
Bandwidth 600MHz
Resolution 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz, 3440x1600, 3440x1440, 2560x1600, 2560x1440, 2048x1080, 1920x1440, 2560x1080
Audio format LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/Dolby TrueHD 7.1/Dolby Digital/Dolby Atmos
RS-232 3 Pin(GND/Rx/Tx), Baud rate 9600
Voltage DC 5V/1A
Power consumption <3W
Working temperature -20℃~60℃
Storage temperature -30℃~70℃
Humidity 0~90%RH
Housing Iron
Color Black
Weight 510g
Dimension 250.0(L) x 80.0(W) x 21.0(H) mm
Protection ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
WARRANTY

1-year limited warranty
