TP-Link | TL-MCRP100 | Redundant Power Supply Module - 006.016.0018
SKU
431112
Brand
MPN
006.016.0018
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$200.00
Buy Now And Earn 200 Reward Points!

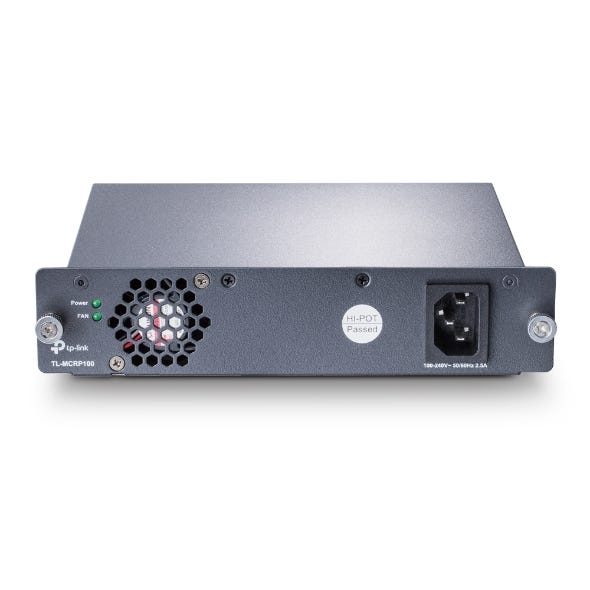

TP-Link | TL-MCRP100 | 100-240V Redundant Power Supply Module
The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 12VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400*.
* TL-MCRP100 v2.0 supports TL-MC1400 v3.0, TL-MCRP100 v1.0 supports TL-MC1400 v1.0/2.0.
FEATURES
- Up to 102 watts output power
- Output over-voltage/short circuit/over-current protection
SPECIFICATIONS
- AC Power Input: 100-240V~ 50/60Hz 3A
- DC Power Output: 12V/8.5A
- Dimensions: 193.4*162.3*42.2 mm
- Environment:
- Operating Temperature: 0℃~60℃ (32℉~140℉)
- Storage Temperature: -35℃~85℃ (-31℉~185℉)
- Operating Humidity: 20%~90%RH non-condensing
- Storage Humidity: 10%~95%RH non-condensing
WARRANTY
3-years limited warranty
Specifications
| SKU | 006.016.0018 |
|---|---|
| Weight | 1.500000 |
| Brand | TP-LINK |
| Manufacturer Part# | TL-MCRP100 |
| GTIN | 845973099848 |
| Colour | Black |
| Warranty | 3 Years |
