Processor	Qualcomm 750MHz CPU, MIPS 74Kc
Memory	128 MB DDR2 RAM, 16 MB Flash
Interface	1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
Power Supply	Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC
Dimensions ( W x D x H )	366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain	23 dBi
Antenna Beamwidth	9° (Azimuth)/7° (Elevation)
Protection	15 KV ESD Protection 6 KV Lightning Protection
Enclosure	Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac
Wireless Speeds	Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency	5.15~5.85 GHz
Transmit Power	Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration	WAN: Static/ Dynamic/ PPPoE LAN: Static/ Dynamic/ DHCP Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger Security: SPI Firewall/ Ping Forbidden/ DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Wireless Configurations	Selectable Channel Width: 20/40/80MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/ Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, SSID Broadcast Enable/ Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia Long Range PtP
Management	Discovery and Remote Management via Pharos Control application HTTP/ HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools	Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment
System-level Optimizations	Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES
Dimensions(W x D x H)	85.8×43.9×29.7 mm
Interfaces	1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button	Remote Reset Button
Power Status LEDs	Green
Input	100-240VAC, 50/60Hz
Output	24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency	>84.29%
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification	CE, FCC, RoHS, IP65, IC
Package Contents	Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment	Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

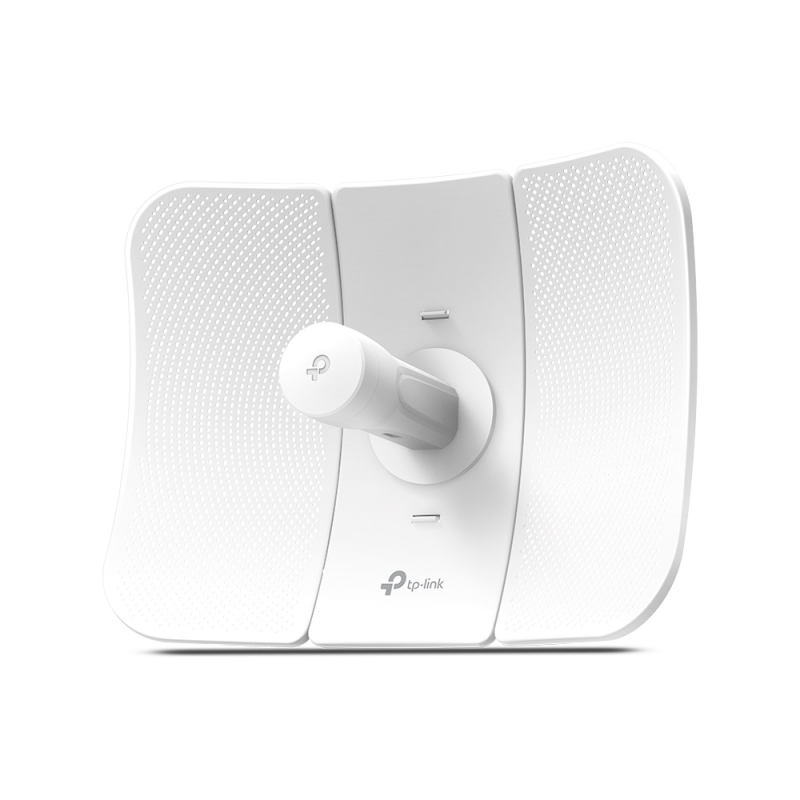

TP-Link CPE710| 5GHz AC 867Mbps 23dBi Outdoor CPE HIGHLIGHTS:    802.11ac for up to 867Mbps on 5GHz wireless data rate    23dBi high-gain directional 2 2 MIMO, ideal for long-distance application    Excellent beam directivity,  improved latency and noise cancellation    Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even       in strong winds    Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather       suitability    Pharos Control gives administrators a free, centralized management system    Passive  PoE  supports to allow flexible deployment and convenient installation   *Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.*Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.*Power supply distances are based on test results under normal usage conditions. Actual power supply distance will vary as a result of 1) AP status, including transmit power, connected devices and network traffic, 2) cable properties, including type and texture  and 3) environmental factors, which include temperature and humidity. WHY 4CABLING? 100% Aussie owned and operated. Expert advice and sales team. Trusted by over 100,000 Aussie customers ISO 9001, NSW & QLD government approved supplier Massive stock levels, ready to go Lightning fast delivery nationwide Warranty & easy return policy Secure online shopping 24/7
