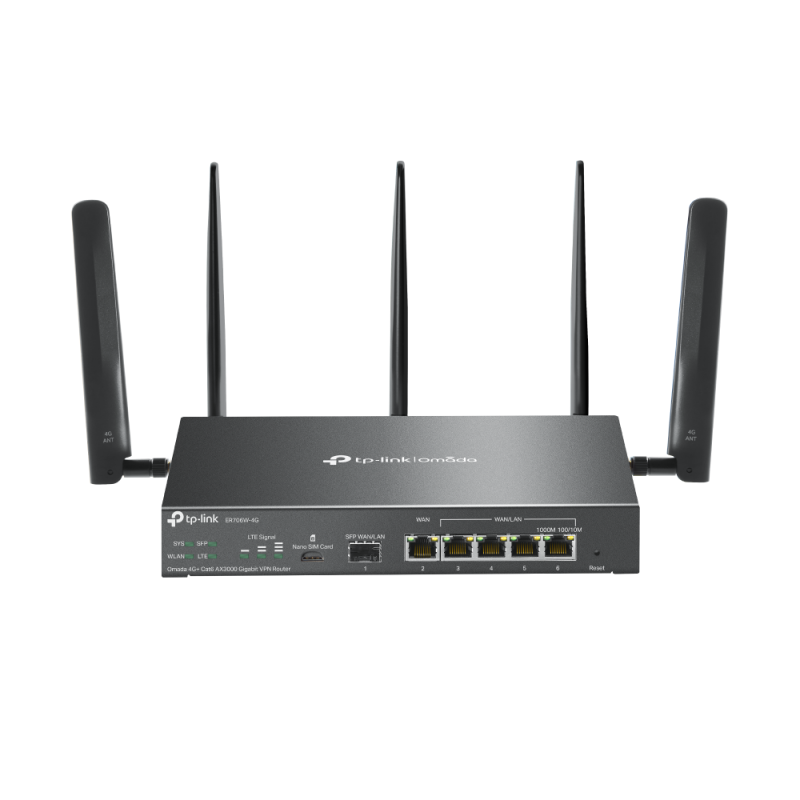

TP-Link | ER706W-4G | Omada 4G+ Cat6 AX3000 Gigabit VPN Router ** PoE Injector Not Included **

Upgrade your network with the TP-Link ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router. Designed for high-speed connectivity and robust performance, this router supports 4G+ Cat6 by simply inserting a Nano SIM card, delivering download speeds up to 300Mbps. Ideal for both homes and small businesses, it offers dual-band WiFi 6 technology, providing up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz, ensuring fast and reliable internet access across all your devices.

Equipped with six Gigabit Ethernet ports, the ER706W-4G guarantees ultra-fast wired connections, perfect for bandwidth-intensive tasks. The five high-gain detachable antennas extend and focus the Wi-Fi signals, offering broader coverage and stronger connections. With centralized management through the Omada cloud and app, network management is simplified, allowing you to control and monitor your network from anywhere.

The router supports Omada Mesh technology, seamlessly integrating with compatible EAPs to create a flexible and efficient mesh network. Its high-security VPN capabilities, including IPSec, SSL, WireGuard, OpenVPN, PPTP, and L2TP, ensure secure remote access and data protection. This router is not just about speed and security; it's designed to be user-friendly, with an easy installation process and intuitive management features.

FEATURES
4G+ Cat6 Support: Insert a Nano SIM card for up to 300Mbps speeds
AX3000 Dual-Band WiFi 6: 2402Mbps on 5GHz and 574Mbps on 2.4GHz
Six Gigabit Ethernet Ports: High-speed wired connectivity
Five High-Gain Detachable Antennas: Enhanced Wi-Fi coverage and signal strength
Centralized Management: Manage via cloud and Omada app
Omada Mesh Support: Seamless connection with mesh-compatible EAPs
High-Security VPN: Supports multiple VPN protocols for secure remote access
SPECIFICATIONS

4G NETWORK TYPE:

LTE Bands (EU):
FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz);
TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G Bands: DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
Carrier Aggregation: Various combinations, including B1+B1, B3+B3, B5+B5, etc.
SIM Type: 1× Nano SIM Card
Frequency:
Downlink: 300Mbps;
Uplink: 50Mbps

SECURITY:

Access Control: Source/Destination IP-Based
Filtering:
Web Group Filtering
URL Filtering
Web Security
ARP Inspection:
GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan, Block Ping from WAN

WIRELESS FEATURES:

Interfaces:
1 Gigabit SFP WAN/LAN Port
1 Gigabit WAN Port
4 Gigabit LAN/WAN Ports
Network Media:
10BASE-T
100BASE-TX
1000BASE-T
Button: Reset Button
Power Supply: 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate:
2.4GHz: 574Mbps
5GHz: 2402Mbps
Flash: 128 MB NAND
DRAM: 512 MB DDR4
LED: SYS, WLAN, SFP, LTE Signal, WAN, WAN/LAN

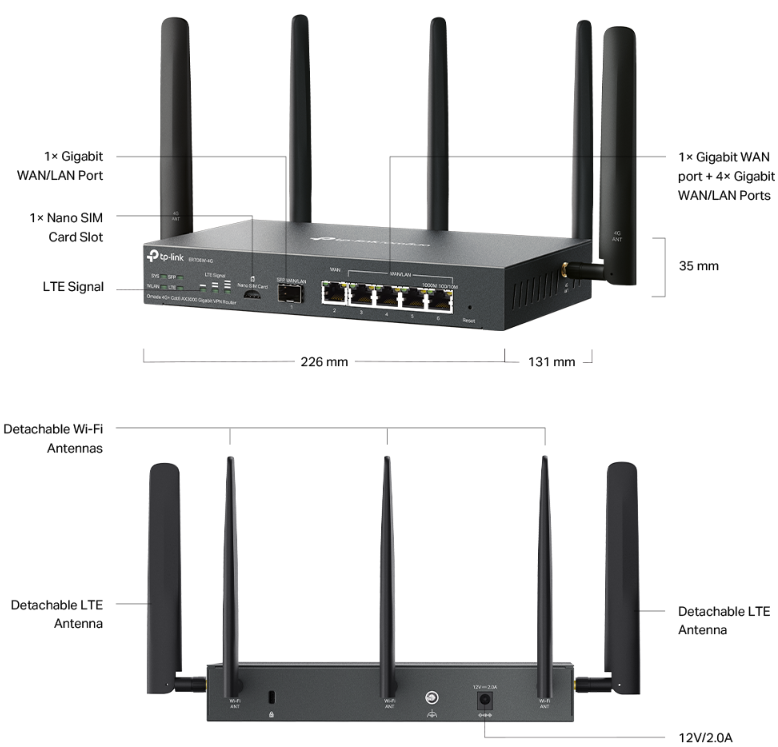

Dimensions: 226 × 131 × 35mm (Antenna dimensions are not included)
Antennas:
WI-FI: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting: Desktop/Wall-Mounting
Max Power Consumption: EU: 17.3W

PERFORMANCE:

GRE:
Unencrypted: 545.3Mbps
Encrypted: 282.6Mbps
WireGuard VPN: 387.7Mbps
Concurrent Sessions: 150,000
New Sessions/Second: 5,100
NAT (Static IP): 947.1Mbps / 940.1Mbps
NAT(DHCP): 949.2Mbps / 941.1Mbps
NAT(PPPoE): 942.6Mbps / 941.1Mbps
NAT (L2TP): 875.4Mbps / 892.0Mbps
NAT (PPTP): 881.2Mbps / 895.8Mbps
IPsec VPN Throughput:
ESP-SHA1-AES256: 652.2Mbps
ESP-SHA256-AES256: 654.4Mbps
ESP-SHA384-AES256: 646.5Mbps
ESP-SHA512-AES256: 670.5Mbps
OpenVPN: 115.5Mbps
L2TP VPN Throughput:
Unencrypted: 990.0Mbps
Encrypted: 475.0Mbps
PPTP VPN Throughput:
Unencrypted: 1177.9Mbps
Encrypted: 177.4Mbps
SSL VPN Throughput: 122.5Mbps
66 Byte Packet forwarding rate: 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate: 81274 pps / 91275 pps

WIRELESS FEATURES:

Advanced Functions:
Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Rate Limit: Based on SSID/Client
Airtime Fairness
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Multiple SSIDs: 16 in total (8 per radio)
Guest Network: Support

BASIC FUNCTIONS:

WAN Connection Types:
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
MAC Clone: Modify WAN Address
DHCP:
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
SMS: Receive / Send SMS
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS:

ACL: IP/Port/Protocol/Domain Name Filtering
Advanced Routing:
Static Routing
Policy Routing
RIP†
OSPF†
Bandwidth Control: IP-Based Bandwidth Control
Load Balance:
Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection
NAT:
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering†
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Session Limit: IP-Based Session Limit

AUTHENTICATION:

Web Authentication:
No Authentication
Simple Password
Hotspot (Local User / Voucher / SMS / Radius)
External Radius Sever
External Portal Sever
LDAP

MANAGEMENT:

Omada App: Yes
Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access: Yes
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.
Management Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

OTHERS:

Certification: CE, FCC, RoH
CONTENTS
EAP783
Ceiling/Wall Mounting Kits
Installation Guide
WARRANTY

1-year limited warranty
