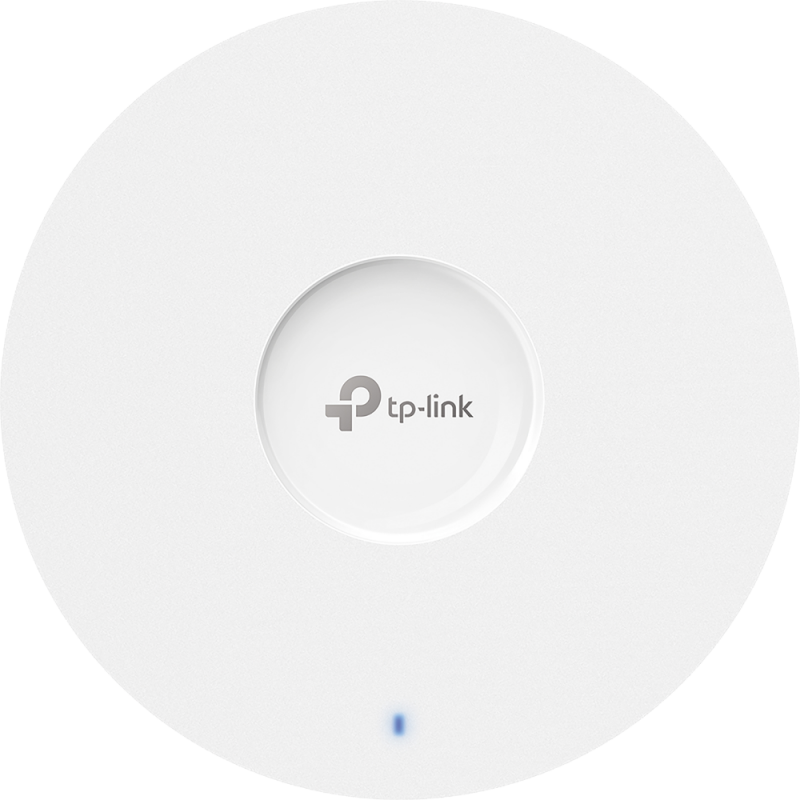

TP-Link | EAP683 LR | Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point **PoE Injector Not Included**

Upgrade your network to the next level with the TP-Link EAP683 LR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point. This cutting-edge device delivers blazing-fast Wi-Fi 6 speeds, ensuring that your network can handle even the most demanding applications with ease. With simultaneous 1148Mbps on 2.4GHz and 4804Mbps on 5GHz, totaling 5952Mbps Wi-Fi speeds, you'll experience unparalleled performance for seamless streaming, gaming, and more.

Upgrade your network infrastructure with the TP-Link EAP683 LR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point and enjoy unparalleled performance, reliability, and flexibility.

FEATURES
Blazing-Fast Wi-Fi 6 Speeds: Simultaneous 1148Mbps on 2.4GHz and 4804Mbps on 5GHz totals 5952Mbps Wi-Fi speeds †
High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds
Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160 ‡
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations §
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment §
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations
SPECIFICATIONS

Hardware Features:

Interface: 1× 2.5 Gigabit PoE+ Port
Button: Reset
Power Supply:
802.3at PoE
12V / 2 A DC
Dimensions: 220 × 220 × 32.5mm
Antenna Type:
Internal Omni
2.4GHz: 4× 4dBi
5GHz: 4× 5dBi
Weatherproof Enclosure: IP65
Mounting: Ceiling /Wall Mounting (Kits included)

Wireless Features:

Coverage: 512*
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate:
5GHz: Up to 4804Mbps
2.4GHz: Up to 1148Mbps
Wireless Functions:
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth) ‡
Seamless Roaming §
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security:
Captive Portal Authentication §
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Management:

Omada App: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Centralized Management:
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access: Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Certification: CE, FCC, RoHS

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general Wi-Fi 6 APs.

§Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /au/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

*The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

WARRANTY

1-year limited warranty
