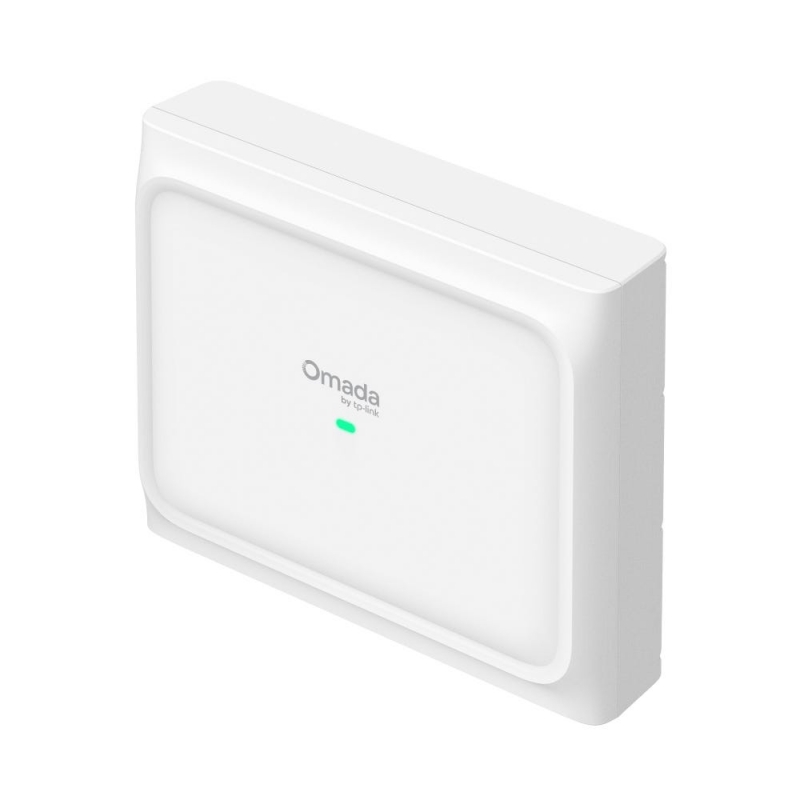

The TP-Link EAP772-Outdoor is a cutting-edge BE9300 Tri-Band Wi-Fi 7 access point engineered for superior performance in Australian indoor and outdoor environments. Leveraging the latest 802.11be standards, it provides combined speeds of up to 9.3Gbps across the 2.4GHz, 5GHz, and 6GHz bands. This high-speed capability ensures a lag-free experience for bandwidth-intensive applications such as 4K/8K streaming, high-definition video conferencing, and large-scale data transfers in high-density settings.

Designed to withstand the harshest Australian conditions, the EAP772-Outdoor features a professional IP68-rated enclosure, offering the highest level of protection against dust and water immersion. With a robust operating temperature range from -30 C to 70 C, this device is ideal for use in exposed locations like farms, coastal resorts, and business parks. The integrated GNSS receiver further enhances deployment by allowing precise device location tracking via GPS maps within the management interface.

This access point delivers expansive omnidirectional coverage up to 300m , making it perfect for providing stable Wi-Fi across large outdoor areas. The 6GHz band, unlocked by AFC technology, provides access to cleaner spectrum with less interference, while the 320MHz bandwidth and 4K-QAM significantly increase data throughput. It is capable of supporting over 380 concurrent clients, making it a reliable solution for crowded venues and high-traffic commercial sites.

Deployment is simplified through the Omada Software Defined Networking (SDN) platform, which offers centralized cloud management and zero-touch provisioning. The unit features a 2.5G PoE+ port to eliminate bottlenecks and support high-speed wired backhaul. Whether mounted on a wall or a pole with the included kits, the EAP772-Outdoor integrates seamlessly with Omada Mesh and seamless roaming technologies to provide a fluid, future-proof wireless experience.

FEATURES

• Tri-Band Wi-Fi 7 with speeds up to 9.3Gbps
• Industry-leading IP68-rated weatherproof enclosure
• 300m recommended omnidirectional coverage
• Integrated GNSS for GPS-based location tracking
• 2.5G Ethernet port for high-speed connectivity
• Supports 380+ concurrent client connections
• Omada SDN integration for centralized cloud management
• 320MHz bandwidth and 4K-QAM for enhanced throughput
• Easy installation with wall and pole mounting kits included

SPECIFICATIONS

• Interface: 1 2.5G Ethernet (RJ-45) Port (Supports 802.3at PoE)
• Wireless Standards: IEEE 802.11be/ax/ac/n/g/b/a
• Signal Rate: 688Mbps (2.4GHz), 2882Mbps (5GHz), 5765Mbps (6GHz)
• Frequency: 2.4GHz, 5GHz, 6GHz
• Maximum Power Consumption: 21.5W (for PoE)
• Dimensions: 230 207.5 69.7mm
• Antenna Type: 2.4GHz: 2 4dBi; 5GHz: 2 6dBi; 6GHz: 2 6dBi
• Weatherproof Rating: IP68
• Mounting: Pole/Wall Mounting (Kits included)
• Wireless Functions: MLO, 4K-QAM, Multi-RU, MU-MIMO, Omada Mesh, Seamless Roaming
• GNSS: L1 (1575.42MHz) receiver supporting GPS, Galileo, GLONASS, and BeiDou
• Bluetooth: BLE 5.2

WARRANTY

3-Year Limited Warranty
