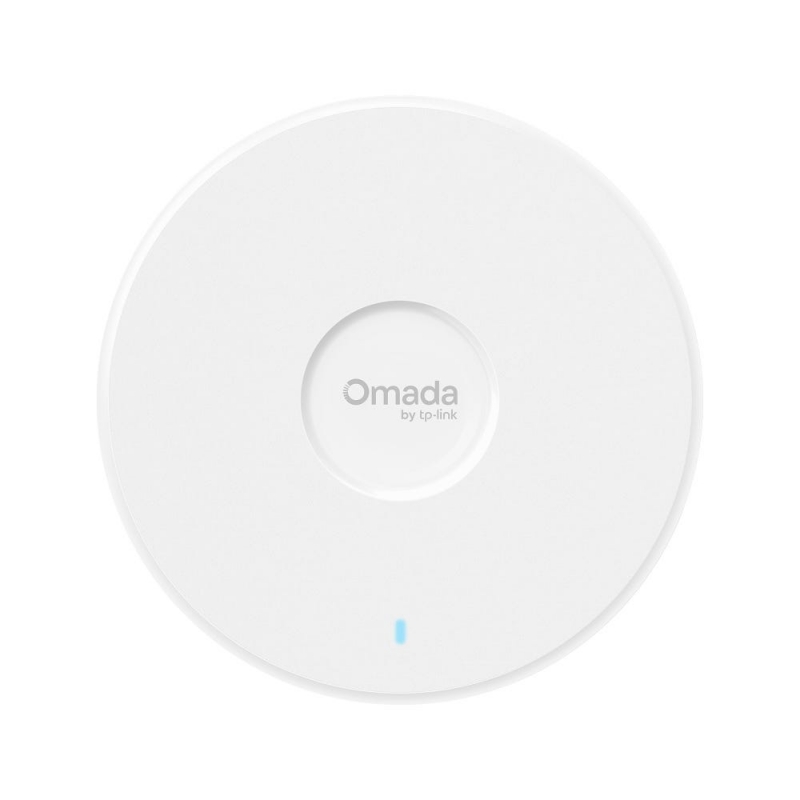

The TP-Link EAP787 is a high-performance Omada BE12000 Ceiling Mount Wi-Fi 7 Access Point designed for demanding enterprise environments. Utilising the latest Wi-Fi 7 standard, it delivers combined tri-band speeds of up to 11020Mbps across the 6GHz, 5GHz, and 2.4GHz bands. This access point features a dedicated RF scanning chip that provides real-time spectrum monitoring and dynamic interference avoidance, ensuring a stable and robust wireless connection even in high-density areas.

Equipped with a 10G Ethernet port, the EAP787 eliminates backhaul bottlenecks, allowing for lightning-fast wired connectivity to the rest of your network. Advanced Wi-Fi 7 technologies, including 320MHz bandwidth, Multi-Link Operation (MLO), 4K-QAM, and Multi-RUs, work together to provide ultra-low latency and massive throughput. This makes it an ideal solution for bandwidth-intensive applications such as high-definition video conferencing, cloud computing, and large-scale data transfers.

The EAP787 is built for massive capacity and extensive coverage, supporting over 510 concurrent clients and covering up to 190m . It integrates seamlessly into the Omada Software Defined Networking (SDN) platform, enabling centralised management, one-click setup, and advanced features like Mesh and Seamless Roaming. For security, it supports WPA3-Enterprise, captive portals, and VLAN tagging to keep your network protected and organised.

Installation is flexible and straightforward with support for both 802.3bt PoE and 12V/2.5A DC power supplies. The included mounting kits allow for easy deployment on ceilings, walls, or junction boxes. Whether you are upgrading an existing network or building a new one, the TP-Link EAP787 provides the future-proof performance and reliability required for modern Australian business connectivity.

FEATURES

• Tri-band Wi-Fi 7 with speeds up to 5765Mbps on 6GHz, 5765Mbps on 5GHz, and 688Mbps on 2.4GHz
• Dedicated RF scanning for real-time spectrum monitoring and interference avoidance
• Single 10G/2.5G Ethernet port for high-speed wired backhaul
• Supports 320MHz bandwidth, MLO, 4K-QAM, and Multi-RUs for reduced latency
• Massive capacity for 510+ concurrent clients and up to 190m coverage
• Omada SDN integration for centralised cloud management and Mesh networking
• Flexible power options supporting 802.3bt/at PoE or 12V/2.5A DC

SPECIFICATIONS

• Interface: 1 10G/2.5G Ethernet Port
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Signal Rate: 5765Mbps (6GHz) + 5765Mbps (5GHz) + 688Mbps (2.4GHz)
• Bandwidth: Up to 320MHz
• Antenna Type: Internal; 2.4GHz: 2 4.0dBi, 5GHz: 4 5.0dBi, 6GHz: 2 5.0dBi
• Bluetooth: 1 5dBi Internal Antenna
• Maximum Power Consumption: 26.3W (PoE), 22.4W (DC)
• Dimensions (W x D x H): 220 220 38.8mm
• Concurrent Clients: 510+
• Mounting: Ceiling, Wall, or Junction Box (Kits included)
• Wireless Security: WPA/WPA2/WPA3-Personal/Enterprise, Captive Portal, VLAN
• Management: Omada App, Cloud-Based/Hardware/Software Controllers

WARRANTY

1-Year Limited Warranty
