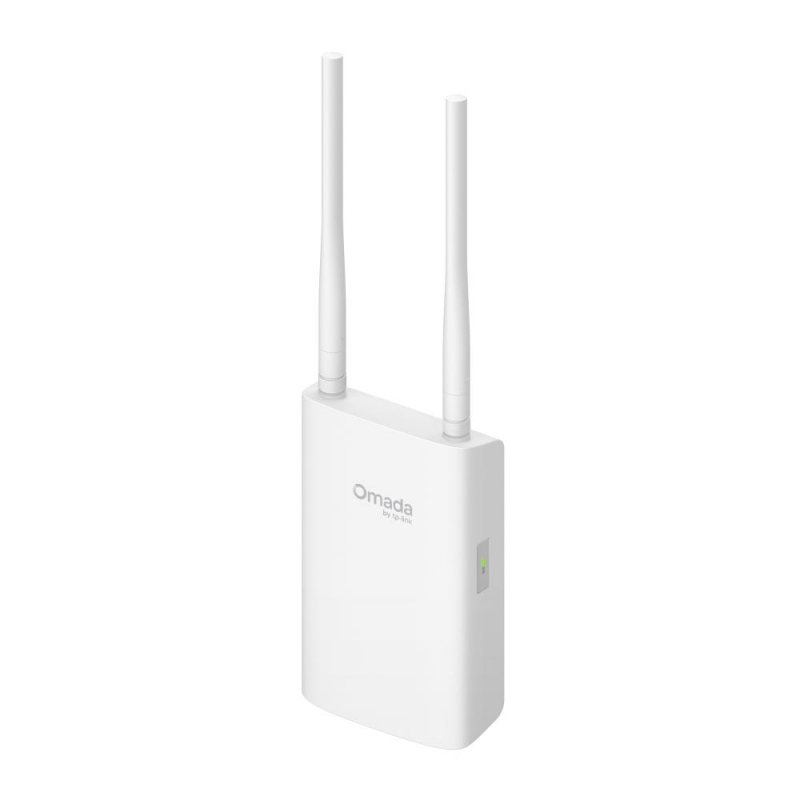

The TP-Link EAP603-Outdoor is a high-performance AX1800 Wi-Fi 6 access point designed to deliver seamless connectivity in both indoor and outdoor environments. Leveraging advanced Wi-Fi 6 technology, it provides combined speeds of up to 1.8Gbps, with 1201Mbps on the 5GHz band and 574Mbps on the 2.4GHz band. This ensures a fast and reliable network experience for high-density outdoor scenarios or expansive indoor spaces.

Engineered for durability, this access point features an IP66 weatherproof rating for wall mounting and IP65 for pole mounting. It is built to withstand harsh Australian conditions, featuring 6kV lightning protection and a wide operating temperature range from -30 C to +70 C. The dual-band omnidirectional antennas provide extensive coverage reaching up to 300m on the 5GHz band, making it ideal for large properties, parks, or school grounds.

Installation is highly flexible with support for both standard 802.3at PoE+ and Passive PoE, and a passive PoE adapter is included in the box for convenience. The unit supports versatile mounting options with included kits for both wall and pole installation. Note that while it supports PoE+, a standalone PoE injector is not included if you are not using a PoE switch or the provided passive adapter.

Integration into the Omada Software Defined Networking (SDN) platform allows for centralised cloud management, enabling one-click setup and remote monitoring. Advanced wireless features such as Omada Mesh, Seamless Roaming, and Band Steering ensure that clients remain connected to the best available signal without interruption as they move through the coverage area.

FEATURES

• High-speed Wi-Fi 6 with aggregate speeds up to 1.8Gbps
• Dual-band omnidirectional coverage up to 300m
• IP66/IP65 weatherproof enclosure for harsh outdoor environments
• 6kV lightning protection and ESD protection
• Supports 802.3at PoE+ and Passive PoE (adapter included)
• Omada Mesh technology for flexible wireless deployment
• Seamless Roaming (802.11k/v/r) for uninterrupted transitions
• Centralised cloud management via Omada SDN
• Supports up to 250+ concurrent client connections

SPECIFICATIONS

• Interface: 1 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45)
• Button: Reset
• Power Supply: 802.3at PoE+ or 48V Passive PoE
• Power Consumption: 15.8W (Max)
• Dimensions: 230 207.5 69.7mm
• Antenna 2.4GHz: 2 4dBi external omnidirectional
• Antenna 5GHz: 2 5dBi external omnidirectional
• Bluetooth: 4dBi internal antenna for IoT
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Signal Rate: 5GHz: 1201Mbps; 2.4GHz: 573Mbps
• Weatherproof Rating: IP66 (Wall), IP65 (Pole)
• Operating Temperature: -30 C to +70 C
• Mounting: Pole or Wall (Kits included)

WARRANTY

1-Year Limited Warranty
