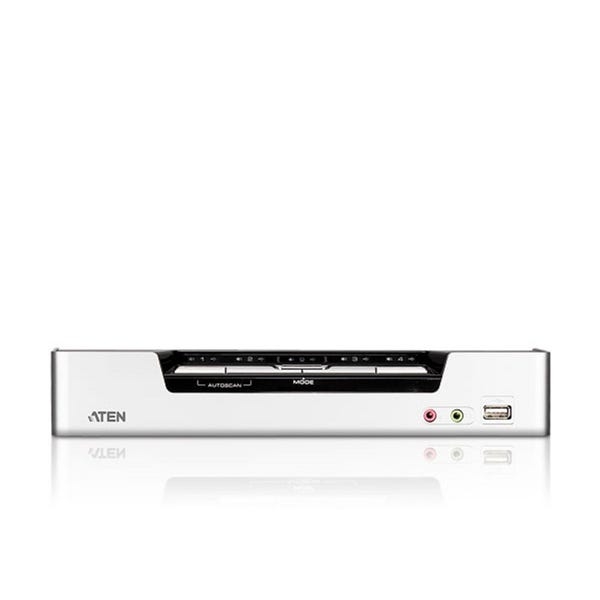

Aten CS1794 4 Port USB HDMI/ Audio KVMPtrade; Switch

The CS1794 Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.

The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSynctrade; technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQtrade; CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

FEATURES

4-port HDMI USB 2.0 KVMPtrade; Switch
One USB console controls four HDMI-interface computers and two additional USB devices
2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
Dolby True HD and DTS HD Master Audio support
Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
Supports widescreen resolutions
Multiplatform support - Windows, Linux,and Mac
Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
Video DynaSynctrade; - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers and HDMI devices
Firmware Upgradable

CONTENTS

1x CS1794 USB 2.0 HDMI KVMPtrade; Switch
4x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Adapter
1x User Instructions

WARRANTY

1-year limited warranty
