This professional-grade 6 core security cable is engineered for reliable performance in alarm and intercom systems. It features high-quality stranded oxygen-free copper conductors, ensuring excellent signal integrity for low voltage and low current applications.

The cable is fully shielded with an AL/pet tape and a tinned copper drain wire. This shielding protects your signal from electromagnetic interference (EMI), making it ideal for interconnect wiring in security and intruder alarm installations where signal clarity is critical.

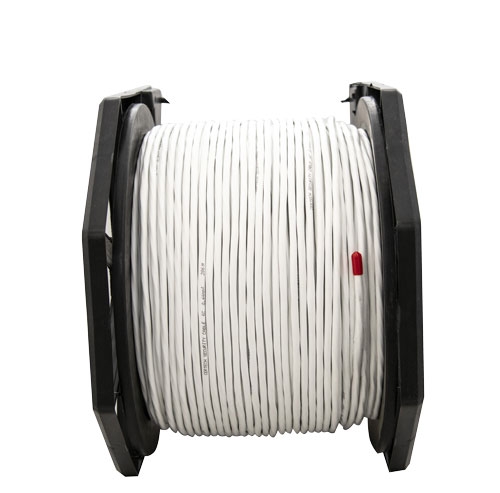

A key feature is its Low Smoke Zero Halogen (LSZH) jacket. In the event of a fire, this jacket emits very low levels of smoke and no toxic halogen gases, making it a safer choice for installations in public spaces and critical environments. The cable is supplied in a convenient 200m reel-in-box for easy deployment.

FEATURES
6 core design for versatile security wiring
Stranded, oxygen-free copper conductors (14/0.20mm)
AL/pet tape shielding with tinned copper drain wire for EMI protection
Low Smoke Zero Halogen (LSZH) white jacket for safety
Suitable for security, alarm, and intercom systems
Supplied in a 200m reel-in-box for easy installation
SPECIFICATIONS
Conductor Material: Stranded Annealed Bare Copper (Oxygen Free)
Conductor Construction: 14/0.20mm
Nom. Cross Section Area: 0.44mm²
Max. DC Resistance: 44.8ohm/km @ 20C
Insulation Nom. O.D.: 1.50mm
Core Colours: Black, White, Red, Blue, Green, Yellow
Drain Wire Construction: 7/0.20mm Tinned Copper
Shield: AL/pet tape (helically wrapped)
Sheath Material: LSZH (White)
External O.D.: 5.8 ± 0.2mm
Operating Temp. Range: -40C to 75C
Package: 200m Reel-in-Box
Cable Weight: 10.6Kg/200M
WARRANTY

1-Year Limited Warranty
