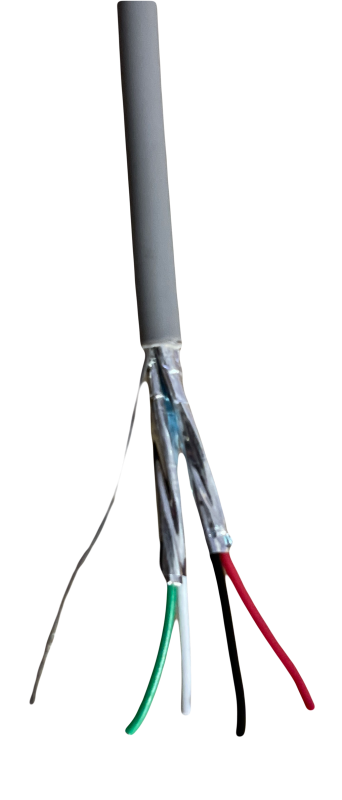

Enhance your data transmission with this high-quality 2-pair data cable, designed for reliable performance over a 300m length. Each of the 7/0.25 gauge pairs is individually screened with an aluminium polyester laminate tape, significantly reducing electromagnetic interference and ensuring clear signal integrity. The inclusion of a drain wire (7 strands x 0.25mm tinned copper) further enhances shielding effectiveness. Its grey PVC jacket provides a durable and flexible outer layer, making it suitable for various installation environments. Ideal for connecting computers, peripherals, and data processing equipment, this cable ensures dependable data communication.

FEATURES

• 2 Pair configuration for versatile data applications
• Individual aluminium polyester laminate screening for superior noise reduction
• 7/0.25 gauge stranded tinned copper conductors for reliable signal transmission
• Drain wire (7 strands x 0.25mm tinned copper) for enhanced shielding
• Durable and flexible grey PVC jacket
• 300m length for extended reach

SPECIFICATIONS

• Core Configuration: 2 Pair
• Conductor Gauge: 7/0.25 (7 strands of 0.25mm)
• Conductor Material: Tinned Copper
• Insulation Material: 0.26mm 75°C Polypropylene
• Pair Colours: Red & Black, White & Green
• Screening: Individual Aluminium Polyester Laminate Tape
• Drain Wire: 7 strands x 0.25mm Tinned Copper
• Jacket Material: Fire Retardant PVC Non Migrating
• Jacket Colour: Grey
• Outer Diameter: 4.27mm
• Impedance: 45 Ohm
• Insulation Resistance: 100 megaohms between shields
• Working Voltage: 50 Volts between adjacent shields
• Length: 300m

WARRANTY

1-Year Limited Warranty
