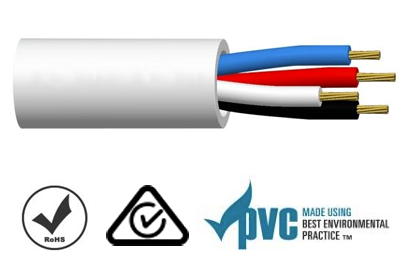

Ensure the safety and reliability of your security, alarm, and communication systems with the 4 Core 14/0.20 Multi-Conductor PVC Security Cable. Designed to meet the demanding requirements of internal systems, this cable offers exceptional performance for monitoring, detection, intercom, and audio communication applications. Its robust construction, featuring 14/0.20mm bare copper conductors and PVC insulation, ensures flame retardancy and durability, making it ideal for a wide range of low voltage and low current applications.

This cable range stands out for its compliance with key standards such as AS/ACIF S008 and BS4737-3.30, and its RoHS certification guarantees that it meets the highest environmental and safety standards. For those concerned with PVC usage, a Halogen Free version is available upon request, catering to specific regulatory or environmental needs. Additionally, tinned conductor versions can be provided, ensuring versatility and adaptability for various installation requirements.

Packaged in a convenient 300m reel box, this cable is easy to handle and install. Its superior physical characteristics, such as high tensile strength and excellent elongation at break, make it a reliable choice for both residential and commercial installations. With a maximum conductor DC resistance of 45.2Ω/km and a minimum insulation resistance of 50MΩ.km at 20°C, this cable ensures efficient and stable performance.

Choose the 4 Core 14/0.20 Multi-Conductor PVC Security Cable for your security and communication needs, and benefit from a product that combines quality, reliability, and compliance with international standards.

Invest in the 4 Core 14/0.20 Multi-Conductor PVC Security Cable for a secure, reliable, and compliant solution to your internal cabling needs.

FEATURES
14/0.20mm bare copper conductors
PVC insulation and outer sheath for flame retardancy
Suitable for security, alarm, and communication systems
RoHS compliant and meets AS/ACIF S008, BS4737-3.30 standards
Halogen Free and tinned conductor versions available upon request
Packaged in a 300m reel box for easy handling
SPECIFICATIONS
Pack Size: 300m
Applicable Standards: AS/ACIF S008, BS4737-3.30
Suitable Applications: Security/Intruder Alarm systems, intercommunication, low voltage/low current applications
ROHS Compliant: Yes
Number of Cores: 4
Conductor Characteristics
AWG: 21
Stranding: 14/0.2mm
Area: 0.44mm²
Diameter: 0.87mm
Material: Bare Copper (BC)
Insulation
Material: PVC
Nominal Thickness: 0.3mm
Nominal OD: 1.5mm

Outer Sheath

Material: PVC
Colour: White
Nominal Thickness: 0.5mm
Nominal OD: 4.7mm

Electrical Properties

Voltage Rating: ELV
Max. Conductor DC Resistance @ 20°C: 45.2Ω/km
Min. Insulation Resistance @ 20°C: 50MΩ.km
Voltage Test (Conductor to core): 1.5kV ac/1min
Voltage Test (Core to sheath): 3.0kV ac/1min

Mechanical Properties

Operating Temp Range: -15 to 70°C
Max. Recommended Pulling Tension: 123N
Min Bend Radius (Install): 47mm
Approximate Mass: 3.4kg/100m
WARRANTY

1-year limited warranty
