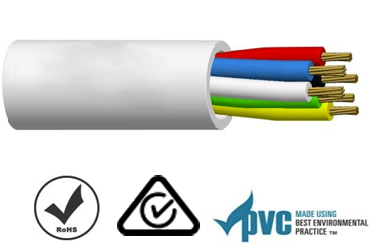

Enhance the reliability and performance of your security, alarm, and communication systems with the 6 Core 14/0.20 Multi-Conductor PVC Security Cable. This high-quality cable, featuring 14/0.20mm bare copper conductors, is designed for optimal performance in internal system applications. Its PVC insulation and jackets ensure flame retardancy, making it ideal for use in monitoring, detection, intercom, and communication-based audio systems.

This cable range meets essential standards such as AS/ACIF S008 and BS4737-3.30, ensuring compliance and safety. For those seeking alternatives to PVC, a Halogen Free version is available upon request, along with tinned conductor versions for specific needs. The robust construction and superior materials make this cable a reliable choice for low voltage and low current applications.

Packaged in a 250m reel box, this cable is easy to handle and install, saving time and effort during setup. With features such as high tensile strength, excellent elongation, and a low maximum conductor DC resistance, this cable ensures efficient and stable performance in various environments.

Choose the 6 Core 14/0.20 Multi-Conductor PVC Security Cable for a reliable, compliant, and versatile solution to your internal wiring needs, and experience the peace of mind that comes with superior quality and performance.

FEATURES
14/0.20mm bare copper conductors
PVC insulation and outer sheath for flame retardancy
Suitable for security, alarm, and communication systems
RoHS compliant and meets AS/ACIF S008, BS4737-3.30 standards
Halogen Free and tinned conductor versions available upon request
Packaged in a 250m reel box for easy handling
SPECIFICATIONS
Pack Size: 250m
Applicable Standards: AS/ACIF S008, BS4737-3.30
Suitable Applications: Security/Intruder Alarm systems, intercommunication, low voltage/low current applications
ROHS Compliant: Yes
Number of Cores: 6
Conductor Characteristics
AWG: 21
Stranding: 14/0.2mm
Area: 0.44mm²
Diameter: 0.87mm
Material: Bare Copper (BC)
Insulation
Material: PVC
Nominal Thickness: 0.3mm
Nominal OD: 1.5mm

Outer Sheath

Material: PVC
Colour: White
Nominal Thickness: 0.5mm
Nominal OD: 6.1mm

Electrical Properties

Voltage Rating: ELV
Max. Conductor DC Resistance @ 20°C: 45.2Ω/km
Min. Insulation Resistance @ 20°C: 50MΩ.km
Voltage Test (Conductor to core): 1.5kV ac/1min
Voltage Test (Core to sheath): 3.0kV ac/1min

Mechanical Properties

Operating Temp Range: -15 to 70°C
Max. Recommended Pulling Tension: 1666N
Min Bend Radius (Install): 61mm
Approximate Mass: 5.4kg/100m
WARRANTY

1-year limited warranty
