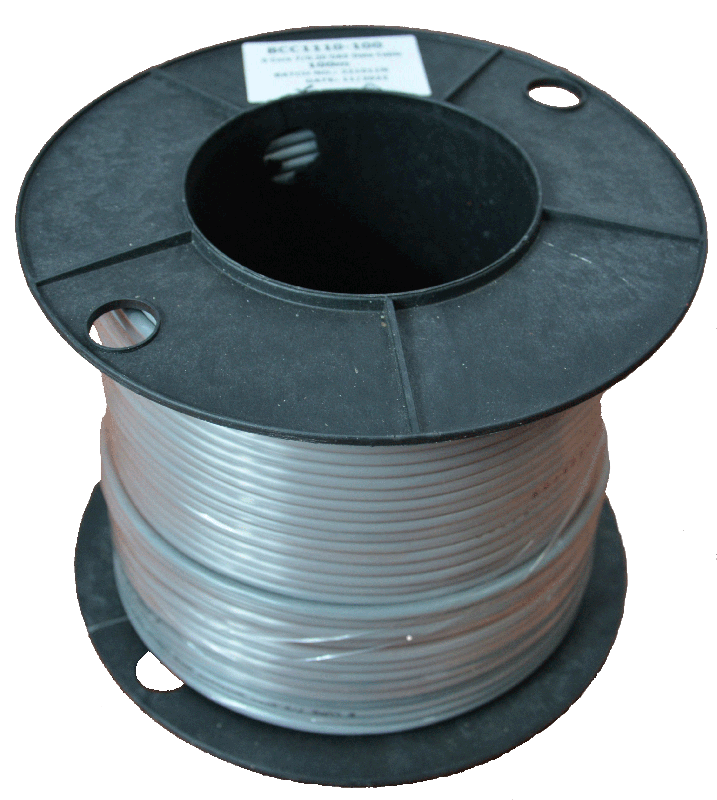

Radum 6 Core 7/0.20 Over ALL Screened (OAS) Data Cable | 250m Grey - 007.003.0117
This 250m reel of 6-core overall screened data cable is ideal for connecting serial RS232 and 4-20mA loop circuit data terminals and communication equipment over short distances in unbalanced mode. It features a stranded 24 AWG conductor, polypropylene insulation, and an aluminium polyester laminate foil tape shield with a drain wire to minimise interference. The cable is protected by a flame-retardant, non-migrating PVC jacket.
FEATURES
- 6 Cores
- Overall Shielded to minimise interference
- Flame Retardant PVC Jacket
- Suitable for RS232 and 4-20mA loop circuits
SPECIFICATIONS
- Cable Type: Data Cable
- Conductor Size: 7/0.20mm (24 AWG)
- Number of Cores: 6
- Shielding: Aluminium Polyester Laminate Foil Tape
- Jacket Material: Flame Retardant PVC
- Insulation Material: Polypropylene
- Voltage Rating: 300V
- Typical Applications: Serial RS232 & 4-20Ma loop circuit data terminal & communication equipment
- Length: 250m
- Jacket Colour: Grey
WARRANTY
1-Year Limited Warranty
Specifications
| SKU | 007.003.0117 |
|---|---|
| Weight | 5.800000 |
| Manufacturer Part# | BCC1110-250 |
| Length | 250m |
| Colour | Grey |
| Core Size | 7/0.20mm² |
| Warranty | 1 Year |
This 250m reel of 6-core overall screened data cable is ideal for connecting serial RS232 and 4-20mA loop circuit data terminals and communication equipment over short distances in unbalanced mode. It features a stranded 24 AWG conductor, polypropylene insulation, and an aluminium polyester laminate foil tape shield with a drain wire to minimise interference. The cable is protected by a flame-retardant, non-migrating PVC jacket.
FEATURES
- 6 Cores
- Overall Shielded to minimise interference
- Flame Retardant PVC Jacket
- Suitable for RS232 and 4-20mA loop circuits
SPECIFICATIONS
- Cable Type: Data Cable
- Conductor Size: 7/0.20mm (24 AWG)
- Number of Cores: 6
- Shielding: Aluminium Polyester Laminate Foil Tape
- Jacket Material: Flame Retardant PVC
- Insulation Material: Polypropylene
- Voltage Rating: 300V
- Typical Applications: Serial RS232 & 4-20Ma loop circuit data terminal & communication equipment
- Length: 250m
- Jacket Colour: Grey
WARRANTY
1-Year Limited Warranty
