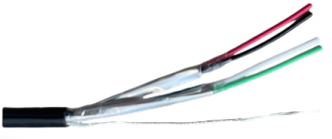

Introducing our high-performance 7 Core 14/0.20 Shielded Jelly Filled Outdoor Cable, ideal for robust and reliable outdoor installations. This 300m black cable is designed to meet the highest standards of durability and performance. Its shielded construction ensures minimal interference, providing clear and stable signal transmission even in harsh environmental conditions.

The jelly-filled core offers superior protection against moisture, making it perfect for outdoor use. Whether you are setting up a new system or upgrading an existing one, this cable ensures consistent performance and longevity. The 7 core configuration allows for multiple connections, making it versatile for various applications.

With a sleek black finish, this cable blends seamlessly with any setup, providing a professional appearance. The 300m length reduces the need for splicing, ensuring a more straightforward installation process and fewer potential points of failure.

Choose our 7 Core 14/0.20 Shielded Jelly Filled Outdoor Cable for a reliable, efficient, and high-quality solution to your outdoor cabling needs. Experience the difference in performance and durability that our cable brings to your projects.

FEATURES
7 core configuration for versatile applications
Shielded for minimal interference
Jelly filled for superior moisture resistance
300m length for extensive coverage
Durable construction for outdoor use
Professional black finish
SPECIFICATIONS
Core Configuration: 7 Core
Wire Gauge: 14/0.20
Cable Type: Shielded, Jelly Filled
Length: 300m
Colour: Black
Conductor: Stranded 21 AWG, 14 strands x 0.20mm Bare Copper
Insulation Material: HDPE
Insulation Nominal Thickness: 0.3mm
Insulation Nominal OD: 1.5mm
Drain Wire: 24 AWG, 7 strands, Tinned Copper
Filler Material: Aluminium Polyester Tape, Jelly Filled, 100% Coverage
Sheath Material: LDPE
Sheath Nominal Thickness: 0.75mm
Sheath Nominal OD: 6.7mm
Max. Conductor DC Resistance: 45.2Ω/km @ 20°C
Min. Insulation Resistance: 1000MΩ/km @ 20°C
Voltage Test (Conductor to Core): 1.5kV ac/1min
Voltage Test (Core to Sheath): 3.0kV ac/1min
Operating Temperature Range: -30°C to 70°C
Max. Recommended Pulling Tension: 215N
Min. Bend Radius: 65.5mm
WARRANTY

1-year limited warranty
