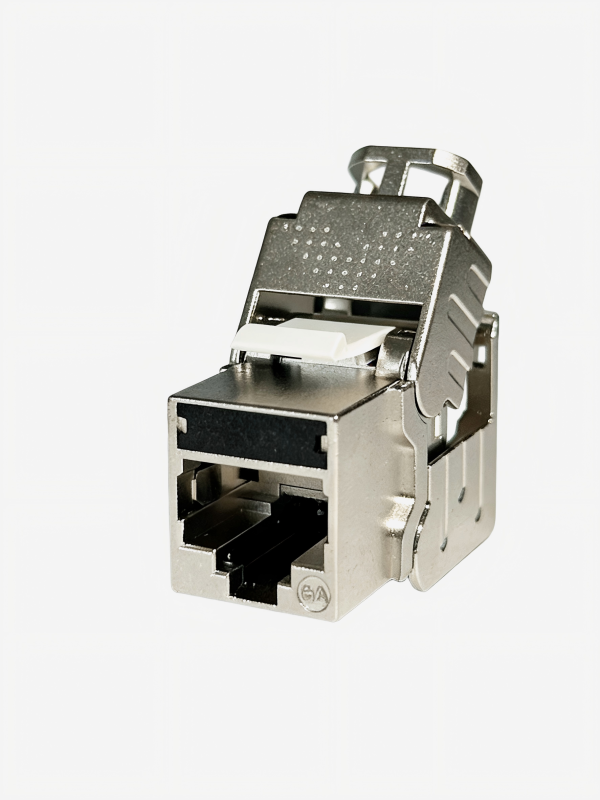

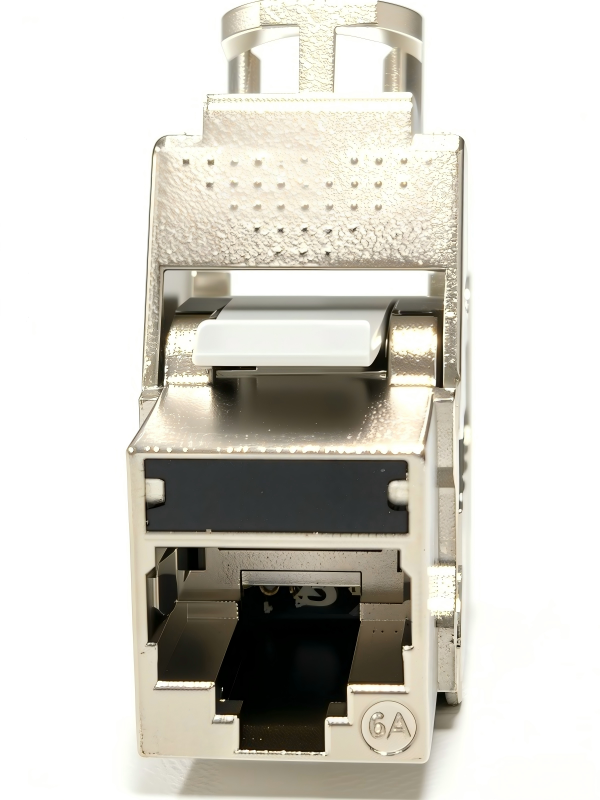

This professional-grade CAT6A FTP Shielded Keystone Jack is engineered for high-speed 10Gbps copper networks requiring robust protection against electromagnetic interference (EMI). The die-cast zinc alloy housing provides 360-degree shielding, ensuring maximum signal integrity for critical data centre and commercial environments. Designed for rapid deployment, the 180-degree toolless IDC allows for efficient termination without the need for specialised punch-down tools.

Built for long-term reliability, the jack features phosphor bronze contacts with high-quality gold plating, rated for 750 mating cycles. The internal IDC terminals accommodate 22AWG to 24AWG solid copper cabling, providing a secure, gas-tight connection. This component is fully compliant with TIA/EIA568 C6A standards, supporting high-performance 10-Gigabit Ethernet applications over distances of 15-90 metres.

The compact design includes a black front insert for easy identification within high-density patch panels or wall plates. Each unit comes complete with a cable tie to ensure proper strain relief and maintain the cable's optimal bend radius. Capable of operating in temperatures ranging from -10°C to 60°C, it is a versatile solution tailored for demanding Australian networking infrastructure.

FEATURES

- 10Gbps CAT6A performance
- 360-degree shielded zinc alloy housing to prevent EMI
- 180-degree toolless IDC termination for rapid deployment
- Gold-plated phosphor bronze contacts for superior conductivity
- Compatible with 22AWG-24AWG solid copper cabling
- T568A and T568B wiring colour coding
- Includes cable tie for secure strain relief

SPECIFICATIONS

- Housing Material: Nickel-plated Zinc Alloy
- Contact Material: Phosphor Bronze C5210 with Gold over Nickel plating
- IDC Terminals: Phosphor Bronze C5191 with Nickel plating
- Transmission Standard: TIA/EIA568 C6A
- Insertion Life: 750 Mating Cycles (FCC compliant 8P plug)
- IDC Durability: 30 Termination Cycles
- Contact Force: 100g
- Plug Retention Force: 11LBF MIN
- Wire Gauge Compatibility: 22AWG to 24AWG Solid
- Insulation Resistance: 500MΩ
- Dielectric Withstanding Voltage: 1000VAC
- DC Current Rating: 1.5Amps
- DC Resistance: 0.1Ω
- Contact Resistance: 20mΩ
- Operating Temperature: -10°C to 60°C
- Humidity Range: 10%-90%RH

WARRANTY
1-Year Limited Warranty
