SRV2KRIRK
Output
Max Configurable Power (Watts)	1.6kWatts / 2.0kVA
Output Voltage Note	Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load	88.0%
Output Frequency (sync to mains)	50/60 Hz +/-1 Hz
Other output Voltages	220, 240
Load Crest Factor	3 : 1
Topology	Double Conversion Online
Waveform type	Sine wave
Bypass	Internal Bypass (automatic and Manual)
Input
Input frequency	45 - 70Hz
Input voltage range for main operations	160 - 280V
Input voltage adjustable range for mains operation	100 - 280V (half load)
Number of Power Cords	1
Other Input Voltages	220, 240
Batteries & Runtime
Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time	4hour(s)
Expected Battery Life (years)	3 - 5
Battery Charge Power (watts)	76Watts
Battery Volt-Amp-Hour Capacity	304
Runtime Graph	View Runtime Graph
Runtime Chart	View Runtime Chart
Efficiency	View Efficiency Graph
Communication & Management
Interface Ports	DB9 RS-232, Smart-Slot, USB
Control panel	Multifunction LCD status and control console
Audible Alarm	Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Emergency Power Off (EPO)	--
Available SmartSlot™ interface Quantity	1
Surge Protection and Filtering
Surge energy rating	600 Joules
Physical
Maximum Height	86mm, 8.6cm
Maximum Width	437mm, 43.7cm
Maximum Depth	462mm, 46.2cm
Net Weight	18.2kg
Shipping weight	20.7kg
Shipping Height	142mm, 14.2cm
Shipping Width	551mm, 55.1cm
Shipping Depth	599mm, 59.9cm
Environmental
Operating Temperature	0 - 40 °C
Operating Relative Humidity	0 - 95%
Operating Elevation	0-3000meters
Storage Temperature	-20 - 50 °C
Storage Relative Humidity	0 - 95 (non-Condensing) %
Storage Elevation	0-15000meters
Audible noise at 1 meter from surface of the unit	50.0dBA
Protection Class	IP20
Conformance
Approvals	CE
Standard warranty	2 years repair or replace

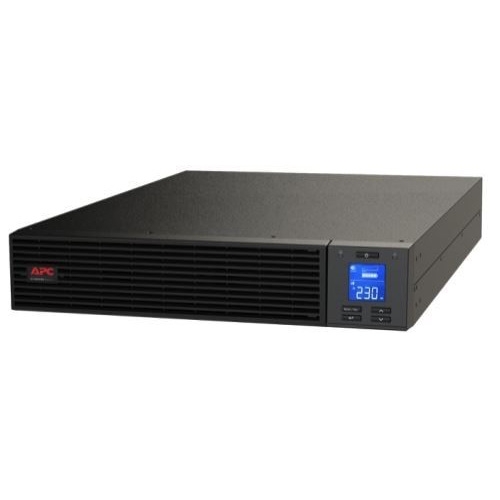

APC Easy UPS On-Line SRV RM 2000 VA 230V with Rail Kit | SRV2KRIRK APC Easy UPS On-Line SRV RM 2000VA 230V with Rail Kit High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting support rails, USB cable, User Manual SRV2KRIRK Features Output power capacity: 1.6kWatts / 2.0kVA Rack Height: 2U Output Connections: (4) IEC 320 C13 (Battery Backup) Nominal Output Voltage: 230V Nominal Input Voltage: 230V Input Connections: IEC-320 C14 Cord Length: 1.48meters Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.  Automatic updates and backups: Updates and backups are automatically applied to always provide the most current solution. ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. Intelligent battery management: Maximizes battery performance, life and reliability through intelligent, precision charging. LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms Serial connection: Use your PC to access additional power protection and manage features for your UPS via a serial port. USB Connection: Use your PC to access additional power protection and manage features for your UPS via a USB port. Easy UPS Online Features & Benefits Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling. Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used. High efficiency: High-efficiency rates that remain stable even at lower operating power levels ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection Double conversion on-line topology: Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source. Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Wide input voltage range: Designed for harsh electrical environments to save battery life. Management Software: Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures easy and intuitive monitoring. USB connection: Use your PC to access additional power protection and management features for your UPS via a USB Port. Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Audible alarms: Provides notification of changing utility power and UPS power conditions Disconnected battery notification: Warns when a battery is not available to provide backup power. Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced. Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement. LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms. SmartSlot: Customize UPS capabilities with management cards Serial connectivity: Provides management of the UPS via a serial port. LED Indicators: Provide easy-to-read status of the unit and utility power conditions. Network manageable: Provides remote power management of the UPS over the network. Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging. Warranty 2-year limited warranty. Why 4Cabling? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning-fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
