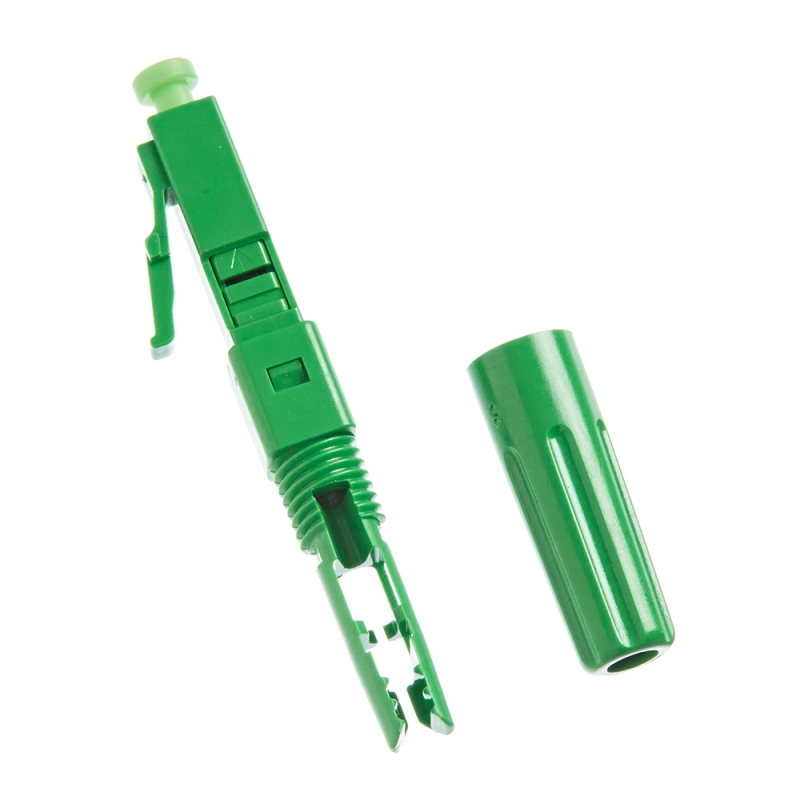

Field Assembly Optical Singlemode Connector | LC APC Connector | Bag of 6

Field assembly connector or fast connector is an innovative field installable optical fibre connector designed for simple and fast field termination of single fibers. Without using additional assembling tools, field assembly connector can be quickly and easily connected to the drop cable and indoor cable, which saves a lot of required termination time. It is specially designed with the patented mechanical splice body that includes a factory-mounted fibre stub and a pre-polished ceramic ferrule. Field assembly connectors enable fast and on-site installation of 250μ, 900μ, 3.0mm and 1.6mm x 2.0mm, 2.0mm x 3.0mm cable type connectors even when the user has no access to power. The whole installation process only takes about 2 minutes which greatly improves the working efficiency.

FEATURES
Field-installable, cost-effective, user-friendly
No requirement for epoxy and polishing
Quick and easy fibre termination in the field
No need for fusion splicer, power source and tool for pressure
Visual indication of proper termination
Suitable for all standard OS1& and OS2& fibre cables
Performance

Item

Performance

Insertion Loss

Average ≤ 0.2dB，Max ≤ 0.4dB

Return Loss

PC：≥ 45dB，APC：≥ 55dB

One-time Assembly Rate

≥ 97%

Assembly Repeatability

More than 5 times

Average Assembly Time

≤ 3minutes

Life-time

≥ 30 years

Tensile Strength

≥ 30N（2×3）Bow-type drop cable

Operation& Temperature

-40℃～+85℃

WARRANTY

1-year warranty.
