4Cabling supplies a large range of fibre optic pigtails for splicing.

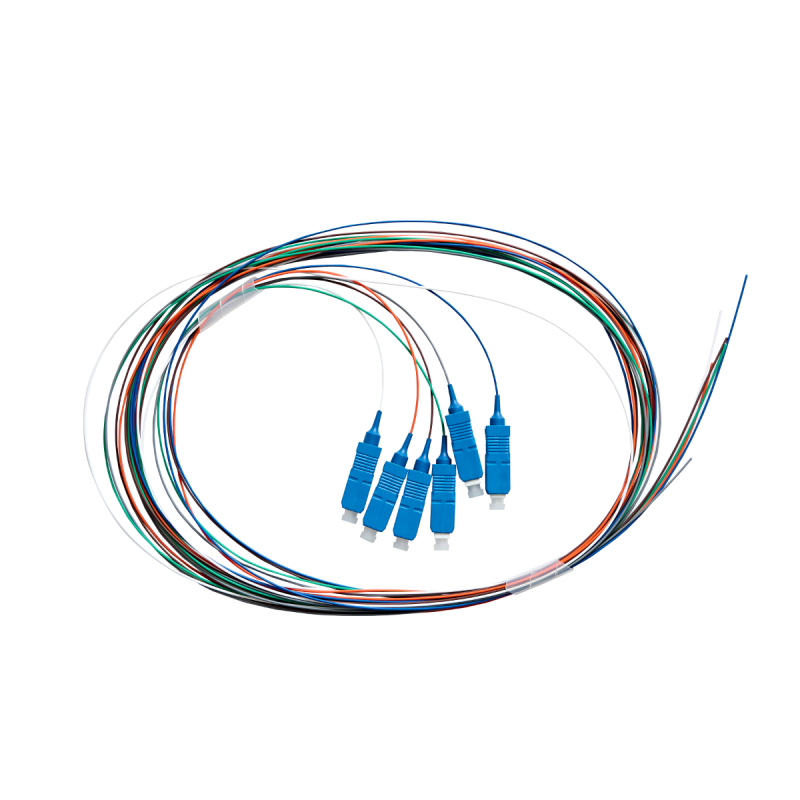

4Cabling's SC Fibre 6 Pack Rainbow OS1 / OS2 Singlemode Pigtails are used to connect high speed networks like gigabit ethernet, fast ethernet and ethernet. The multimode pigtail buffer conforms to IEC, EIA TIA and Telcordia standards and are terminated with standard connectors which give an optimum optical performance.

These packs of 6 colour coded pigtail leads are used in patch panel terminations, with the fibre end of the pigtail being spliced onto the fibre run, and the connector is inserted in a coupler/adaptor on the patch panel.

The connector on the pigtail has been pre-tested and certified in a controlled environment. This eliminates connector installation in the field which has major issues with regard to quality control and testing.

FEATURES

Supports high speed multi-channel data, voice & video applications
Networks including Ethernet, Fast Ethernet and GBE
The colours are the same as international standard multi-core fibre cables.
Internal inter-connect
Outside diameter of fibre jacket is 900μ
UPC (Ultra Physical Contact) connector
Ideal for a wide range of telecom, datacom and process control applications where ruggedisation is required.
UL approved fibre optic cables
Conforms to ISO/ IEC 11801

FIBRE SPECIFICATIONS

Mode: OS1/OS2 Singlemode
Fibre Size: 9μ Core, 125μ Cladding
Fibre Terminations: SC UPC (Ultra Physical Contact) Connector
Length: 2m
Jacket Diameter: 900μ
Colour: 6 Pack Rainbow

WARRANTY

3 year limited warranty.
