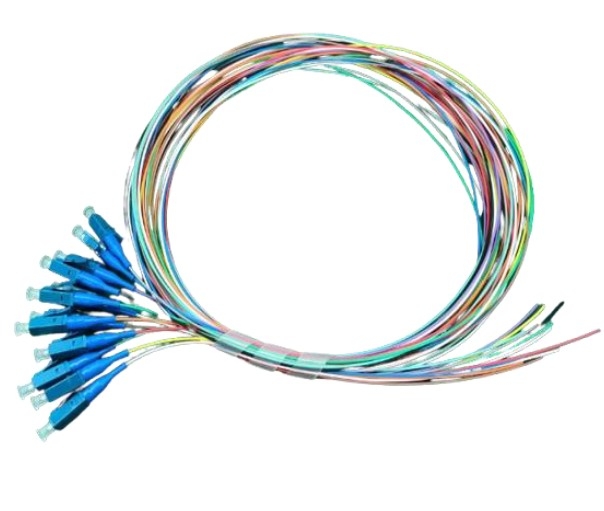

Optimise your fibre optic network with this high-performance 12-pack of LC/UPC singlemode fibre pigtails. Engineered to meet stringent data centre power budgets and compliant with IEC 61755 & EN 61300 standards, these pigtails ensure reliable and efficient optical performance. Each pigtail undergoes 100% optical inspection and testing, guaranteeing superior quality and consistency. Ideal for high-bandwidth Ethernet, Fibre Channel, Storage Area Networks (SANs), CCTV, and security applications, these pigtails offer exceptional flexibility for your network infrastructure.

The pigtails feature a 0.9mm tight-buffered cable design, providing excellent protection for the G657A1 singlemode fibre. The LSZH (Low Smoke Zero Halogen) material used for the tight-buffer ensures safety in various environments. Available in a 12-colour rainbow sequence, these pigtails facilitate easy identification and installation, streamlining your cable management and reducing deployment time. Their robust construction and adherence to industry standards make them a dependable choice for critical optical connections.

With a low insertion loss of less than or equal to 0.3dB and a high return loss of greater than or equal to 50dB, these pigtails deliver pristine signal transmission, crucial for maintaining network integrity and performance. The G657A1 fibre type offers enhanced bend insensitivity, allowing for tighter bends without significant signal loss, which is invaluable in congested spaces or challenging installation scenarios. This feature, combined with a compact 0.9mm cable diameter, enables greater flexibility in routing and deployment, maximising space efficiency within your data centre or communication cabinets.

Each pigtail is designed for durability and long-term stability, with a wide operating temperature range of -20 to 70 C, ensuring consistent performance in diverse environmental conditions. The precise geometry parameters, including a radius of curvature between 7-25mm and an apex offset of max 50nm, further contribute to their exceptional optical characteristics. The VF-PIG0.9A1LSZH12FO-250503 pigtail pack provides a reliable and cost-effective solution for establishing robust and future-proof fibre optic connections.

FEATURES

• 100% optical inspection and testing ensures reliability.
• Compliant with IEC 61755 & EN 61300 standards.
• RoHS compliant for environmental safety.
• Low Smoke Zero Halogen (LSZH) tight-buffer material for enhanced safety.
• Available in 12 distinct colours for easy identification and management.
• Enhanced bend insensitivity (G657A1 fibre) for flexible routing.

SPECIFICATIONS

• Model: VF-PIG0.9A1LSZH12FO-250503.
• Fibre Type: Singlemode (SM) G657A1.
• Connector Type: LC/UPC.
• Cable Diameter: 0.9mm.
• Fibre Count: 12.
• Fibre Colour Code: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua.
• Insertion Loss (SM UPC): Less than or equal to 0.3dB.
• Return Loss (SM UPC): Greater than or equal to 50dB.
• Mode Field Diameter (MFD):
  • 1310nm: $8.8pm0.4mu m$
  • 1550nm: $9.8pm0.5mu m$
• Cladding Diameter: $125pm0.7mu m$.
• Coating Diameter: $245pm5mu m$.
• Attenuation:
  • 1310nm: Less than or equal to 0.35dB/km
  • 1550nm: Less than or equal to 0.21dB/km
• Macro-Bending Loss:
  • 1 turn $times7.5$mm radius @1550nm: Less than or equal to 0.2dB
  • 1 turn $times7.5$mm radius @1625nm: Less than or equal to 0.5dB
• Min. Bend Radius (Dynamic): Greater than or equal to 10mm.
• Min. Bend Radius (Static): Greater than or equal to 5mm.
• Operating Temperature: -20~70 C.
• Installation Temperature: -30~60 C.

WARRANTY

3-Years Limited Warranty
