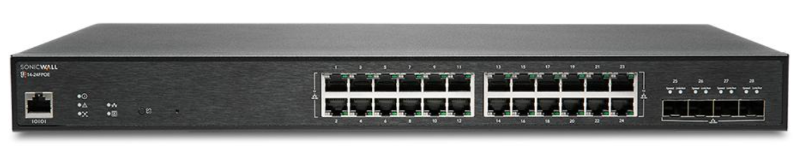

SonicWall Sws14-24Fpoe 24 Ports Manageable Ethernet Switch - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - 2 Layer Supported - 500.40 W Power Consumption - 410 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable
SKU
301938
Brand
MPN
02-SSC-2468
Warranty
Standard Manufacturer's Warranty
$1,850.00
Buy Now And Earn 1850 Reward Points!
QUICK OVERVIEW
02-SSC-2468
SonicWall Switch
High-speed Network Switching for Business Connectivity
The SonicWall Switch delivers high-speed network switching while providing unparalleled performance and manageability through SonicWall firewalls or Wireless Network Manager. It features a unified security posture, high port density, Power over Ethernet (PoE) options, and gigabit or 10 gigabit performance capabilities. New capabilities such as SNMP monitoring and backup and restore of Switch configurations make it ideal for small- and medium-sized businesses (SMB) and Software-Defined Branch (SD-Branch) deployments. This enables businesses - big or small - to accelerate digital transformation and keep pace with the changing network and security landscape.
High-speed Network Switching for Business Connectivity
The SonicWall Switch delivers high-speed network switching while providing unparalleled performance and manageability through SonicWall firewalls or Wireless Network Manager. It features a unified security posture, high port density, Power over Ethernet (PoE) options, and gigabit or 10 gigabit performance capabilities. New capabilities such as SNMP monitoring and backup and restore of Switch configurations make it ideal for small- and medium-sized businesses (SMB) and Software-Defined Branch (SD-Branch) deployments. This enables businesses - big or small - to accelerate digital transformation and keep pace with the changing network and security landscape.
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Form Factor | Rack-mountable |
| Power Consumption | 500.40 W |
| Brand Name | SonicWall |
| Expansion Slot Type | SFP+ |
| Manageable | Yes |
| Ethernet Technology | 10 Gigabit Ethernet, Gigabit Ethernet |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4 |
| Manufacturer Part Number | 02-SSC-2468 |
| Manufacturer Website Address | http://www.sonicwall.com |
| Manufacturer | SonicWall Inc. |
| Product Model | SWS14-24FPOE |
| Product Name | SWS14-24FPOE Ethernet Switch |
| Number of SFP+ Slots | 4 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE, 4 x 10 Gigabit Ethernet Expansion Slot |
| Network Technology | 1000Base-T, 10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Additional Information | • Memory (MB): 512 • Flash (MB): 128 • Packet Buf.: 1.5M • Mac Table: 32K • Switching (Gbps): 128 • Fan: 2 • Power Supply: 480W Fixed • Power Source:100-240VAC 50-60Hz • Current: 7.0A • Heat Dissipation (BTU): 1706.4 • Min Power Cord Amperage: 10 Amp • Operating Temperature: 0 - 40ºC • Storage Temperature: -40 - 70ºC • Humidity: 10-95% R.H • RJ-45 Serial Console Port: 1 • MTBF @25ºC in Years: 18 • Switching Capacity (Duplex) in Gbps: 128 • VLANs: 4096 • Regulatory Model: 1RK45-0E5 |
| Application/Usage | Network, Printer, Small Business, IoT Devices, Wireless Access Point, Camera, IP Camera, Medium Business, VoIP Phone |
| Networking Standards | IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.1x |
| Weight (Approximate) | 3.90 kg |
| Height | 44 mm |
| Width | 440 mm |
| Depth | 260 mm |
| Compatible Rack Unit | 1U |
| Input Voltage | 120 V AC, 230 V AC |
| Frequency | 60 Hz, 50 Hz |
| PoE Budget | 410 W |
| MTBF | 157763 Hour |
| Features | Access Control List, Built-in Fan, DHCP Snooping, Energy Efficient, Zero-Touch Provisioning (ZTP), IGMP Snooping, Quality of Service (QoS), Virtual LAN (VLAN), Flow Control |
| Shipping Dimensions | Height 11, Width 35, Length 54, Shipping Weight 4.8 KG |
SonicWall SWS14-24FPOE 24 Ports Manageable Ethernet Switch - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-T, 10GBase-X - 2 Layer Supported - 500.40 W Power Consumption - 410 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable
