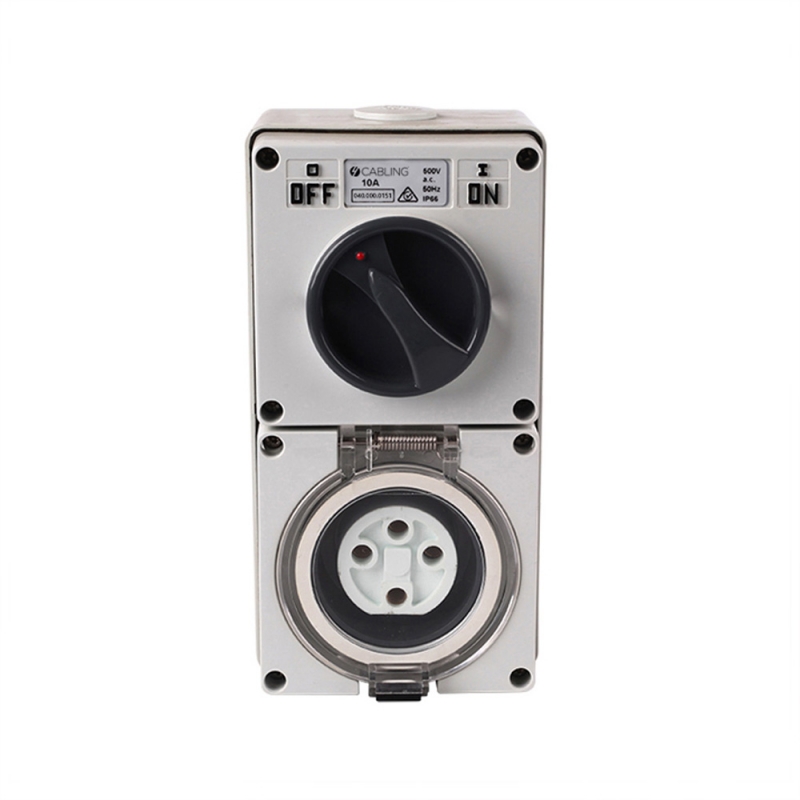

4C | Combination Switch socket 4Pin IP66 500V 10A

4Cabling IP66 Combination Switch and Socket outlet equipped with dust resistant, hose proof and UV resistant, most suitable for heavy industrial environments. The aesthetic appearance makes it the ideal choice for installation in commercial facilities such as television studios, shopping centres and warehouses, just as acceptable alongside a public or domestic swimming pool.

FEATURES
Available in 10A-32A Options
IP66 rating protection against dusty and wet environments
UV rated to protect against harsh and direct sunlight
Temperature resistance from -25°C to +50°C providing suitability for harsh Australian conditions
Grey colour body to match with the outdoor environment
PVC Enclosures to suit the solvent bonded standard electrical PVC conduit accessories.
All switches with padlocking facility to ensure extra security
Captive stainless steel combination head screws to provide corrosion resistance and simplified installation
1 x 32mm and 2x25mm Cable entry to the enclosure
Max terminal size for the cable: 25 sqmm
SPECIFICATIONS
QUANTITY IN PACK 1
COLOUR Grey
PIN CONFIGURATION 4 Round
MATERIAL PVC
ORIENTATION Vertical
SUPPLY VOLTAGE 500V 10A
NOMINAL CONDUCTOR SIZE 1.0mm²
MAX CABLE DIAMETER 24mm
M RATING 100
COMPLIANCES AS 60529:2004/NZS IEC 60947.1:2015 AS/NZS 3121:2002 AS/NZS 3100:2017 A1
WARRANTY 3 Years
