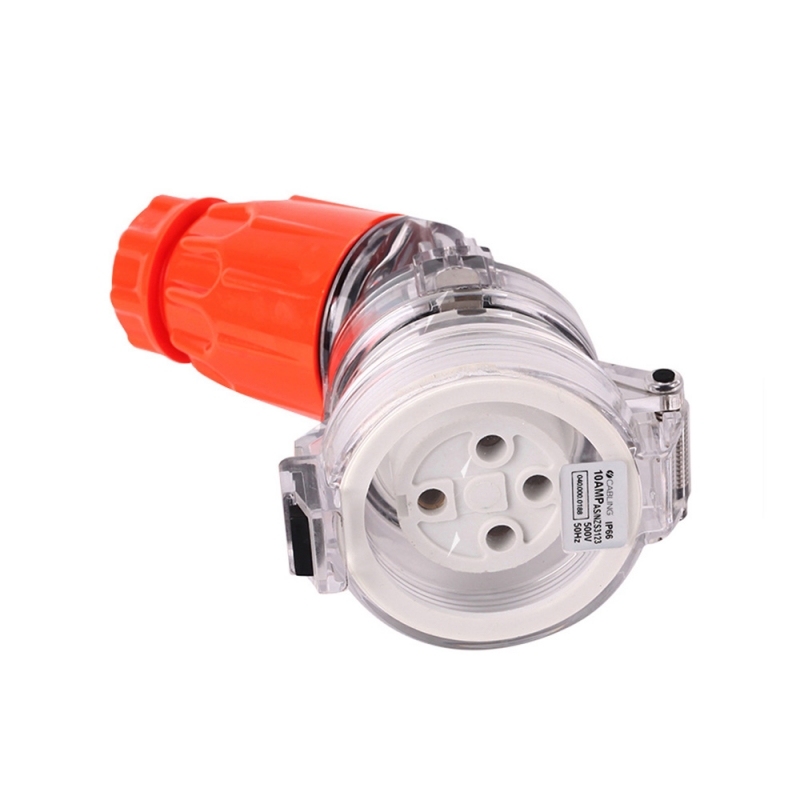

4C | Angle Extension Socket IP66 500V 4Pin 10A

The 4Cabling Industrial Extension Socket Series are IP66-certified, suitable for outdoor, industrial and commercial use, and available in a choice of pin and voltage.

FEATURES
Available in 10A-32A Options
Suitable for medium to large single-phase and three-phase loads.
Locking rings to ensure IP66 rating.
Better and safe cable entry
Polycarbonate housing with premium resins to withstand extreme weather conditions
Small and large cable seals provided to suit a wide range of cable dimensions.
Quick assembly with a screwed ring for securing to socket outlets and to ensure IP66 rating
Impact-resistant, UV stabilised mouldings with high-quality resins
Transparent pin surround provides quick and sure location of plug-in socket and protection of pins
Stronger cord clamp and body sleeve connection
Wider lock-ring is easier to unscrew from sockets (ideal for operating while wearing protective gloves)
Premium grade stainless steel and brass internal mechanisms ensure reliable operation in harsh conditions
Plugs feature locking rings to ensure they do not fall out and to maintain IP ratings.
SPECIFICATIONS
QUANTITY IN PACK 1
COLOUR Orange
PIN CONFIGURATION 4 Round
MATERIAL Polycarbonate
SUPPLY VOLTAGE 500V 10A
NOMINAL CONDUCTOR SIZE 1.0mm²
MAX CABLE DIAMETER 12.8mm
COMPLIANCES AS 60529:2004/NZS IEC 60947.1:2015 AS/NZS 3121:2002 AS/NZS 3100:2017 A1
WARRANTY 3 Years
