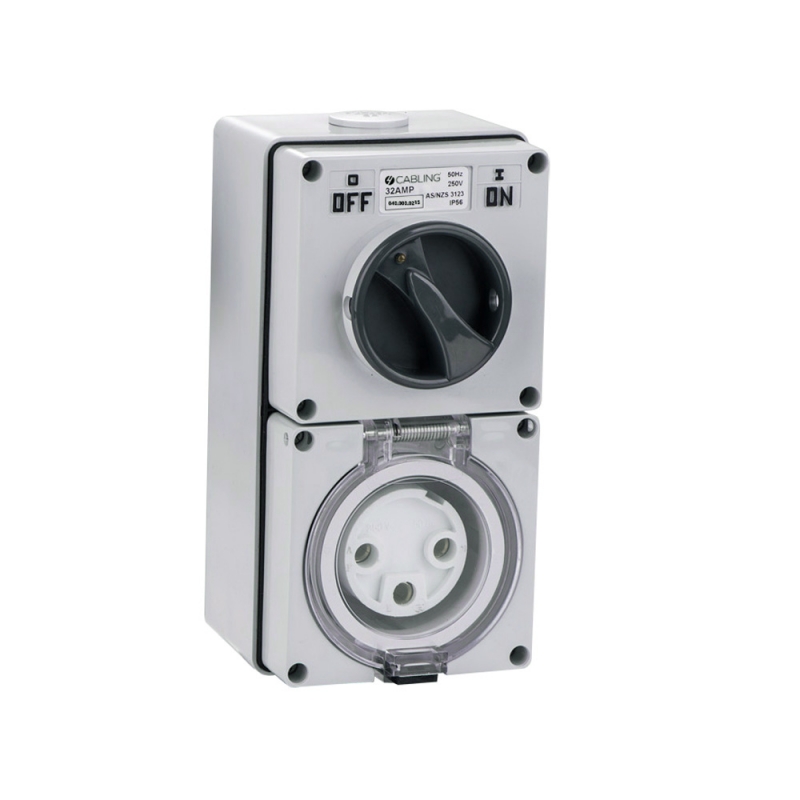

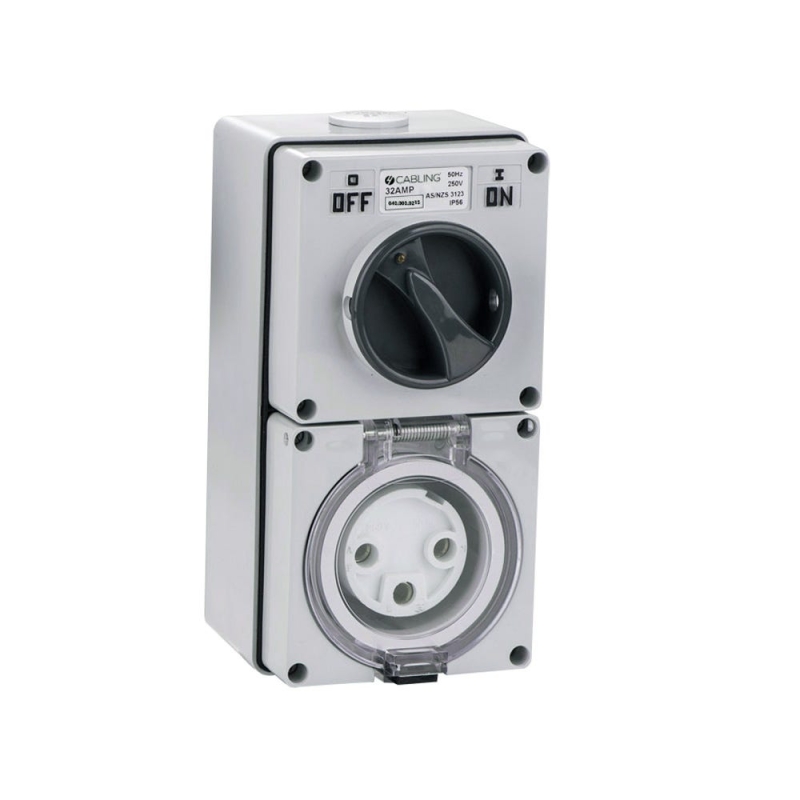

4C | Combination Switched socket 3 Round Pin IP66 250V 32A (040.000.0215)

SKU
306225
Brand
MPN
040.000.0215
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $41.00 Regular Price $47.00
Buy Now And Earn 41 Reward Points!

4C | COMBINATION SWITCHED SOCKET 3 ROUND PIN IP66 250V 32A

4Cabling IP66 Combination Switch and Socket outlet equipped with dust resistant, hose proof and UV resistant, most suitable for heavy industrial environments. The aesthetic appearance makes it the ideal choice for installation in commercial facilities such as television studios, shopping centres and warehouses, just as acceptable alongside a public or domestic swimming pool.

FEATURES

  • Available in 10A—32A Options
  • IP66 rating protection against dusty and wet environments
  • UV rated to protect against harsh and direct sunlight
  • Temperature resistance from -25C to +50C providing suitability for harsh Australian conditions
  • Grey colour body to match with the outdoor environment
  • PVC Enclosures to suit the solvent bonded standard electrical PVC conduit accessories.
  • All switches with padlocking facility to ensure extra security
  • Captive stainless steel combination head screws to provide corrosion resistance and simplified installation
  • 1 x 32mm and 2x25mm Cable entry to the enclosure
  • Max terminal size for the cable: 25 sqmm
QUANTITY IN PACK 1
COLOUR Grey
PIN CONFIGURATION 3 Round
MATERIAL PVC
ORIENTATION Vertical
SUPPLY VOLTAGE 250V 32A
M RATING 100
COMPLIANCES AS 60529:2004/NZS IEC 60947.1:2015 AS/NZS 3121:2002                          AS/NZS 3100:2017 A1
WARRANTY 3 Years
