QUANTITY IN PACK	1
DIMENSIONS W x H x D	82.5 x 166 x 86mm
TEMPERATURE RESISTANCE	-25°C to +50°C
POLES	3
SUPPLY VOLTAGE	440V 35A
M RATING	180
IP RATING	IP66
COMPLIANCE	AS/NZS IEC 40947.3:2018                    AS/NZS IEC 60947.1:2015I
WARRANTY	3 Years

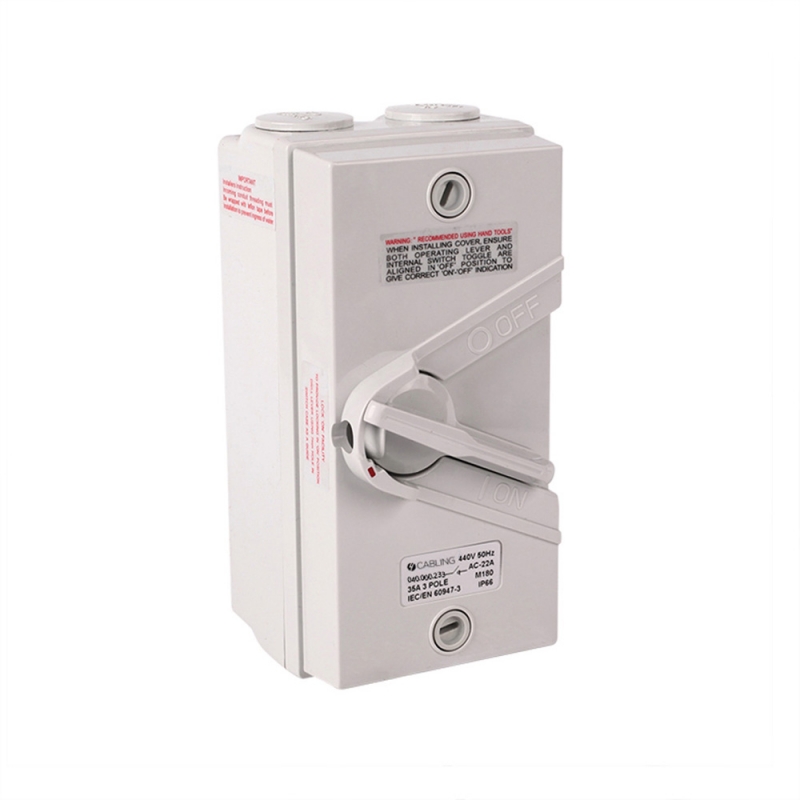

4C | Weatherproof Isolator 3 Pole IP66 440V 35A The 4Cabling Weatherproof Isolator Series is IP66 certified, robust, suitable for outdoor and warehouse use, and features standard and mini designs. APPLICATION Most suitable for residential, commercial and industrial applications, such as air conditioners, swimming pools, outdoor illumination signage, solar equipment, gardens, car parks and exterior walls FEATURES Combination head terminal screws Combination head earth and neutral terminal screws Alignment sleeves on switch housing guides the screwdriver into terminal screws to reduce the frequency of screwdriver tips slipping Cables looped in and out from: Overhead, Underground or Straight through the switch Includes 20-25mm threaded reducers for hassle-free installation  Temperature Resistance The temperature range is limited by two aspects: The material used in mouldings The operating temperature of the electrical components.       This limits the use of the standard product to -25ºC to +75ºC SPECIFICATIONS QUANTITY IN PACK 1 DIMENSIONS W x H x D 82.5 x 166 x 86mm  TEMPERATURE RESISTANCE -25°C to +50°C POLES 3 SUPPLY VOLTAGE 440V 35A M RATING 180 IP RATING IP66 COMPLIANCE AS/NZS IEC 40947.3:2018                    AS/NZS IEC 60947.1:2015I WARRANTY 3 Years WHY 4CABLING? 100% Aussie Owned and Operated Expert Advice and Sales Team Trusted by Over 100,000 Aussie Customers ISO 9001, NSW & QLD Government Approved Supplier Massive Stock Levels, Ready to Go Lightning Fast Delivery Nationwide Warranty & Easy Return Policy Secure Online Shopping 24/7
