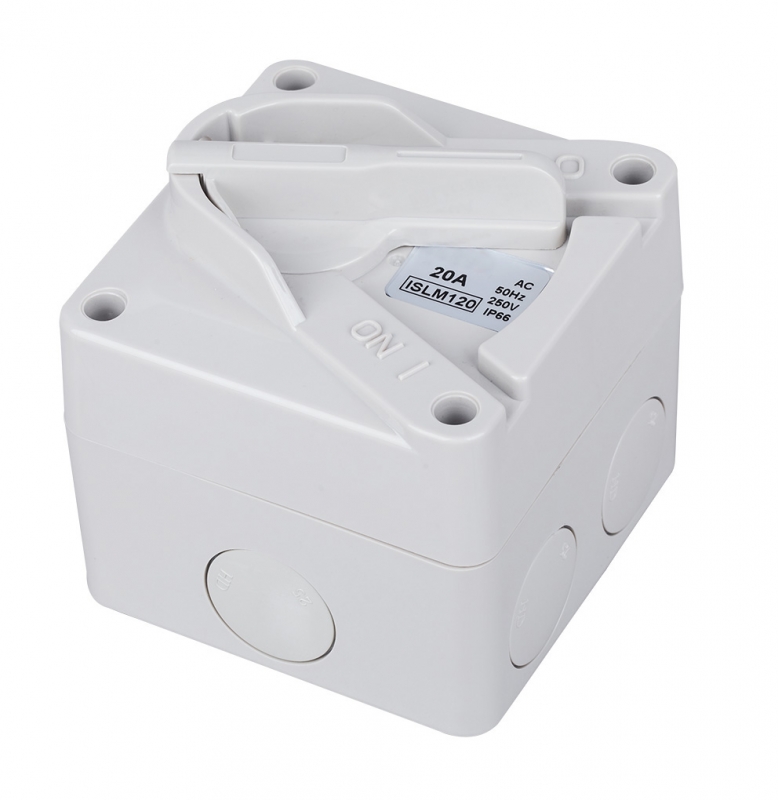

4C | Weatherproof Switch 2 pole IP66 250V 20A

The 4Cabling Weatherproof Isolator Series is IP66 certified, robust, suitable for outdoor and warehouse use, and features standard and mini designs.

APPLICATION

Most suitable for residential, commercial and industrial applications, such as air conditioners, swimming pools, outdoor illumination signage, solar equipment, gardens, car parks and exterior walls

FEATURES
Combination head terminal screws
Combination head earth and neutral terminal screws
Alignment sleeves on switch housing guides the screwdriver into terminal screws to reduce the frequency of screwdriver tips slipping
Cables looped in and out from: Overhead, Underground or Straight through the switch
Includes 20-25mm threaded reducers for hassle-free installation
Temperature Resistance

The temperature range is limited by two aspects:

The material used in mouldings
The operating temperature of the electrical components.

This limits the use of the standard product to -25°C to +75°C

SPECIFICATIONS
QUANTITY IN PACK 1
DIMENSIONS W x H x D 86 x 86 x 85.8mm
TEMPERATURE RESISTANCE -25°C to +50°C
POLES 1
SUPPLY VOLTAGE 250V 20A
M RATING 100
IP RATING IP66
COMPLIANCE AS/NZS IEC 40947.3:2018, AS/NZS IEC 60947.1:2015I
WARRANTY 3 Years
