This high-quality fibre optic cable is engineered for reliable data transmission, suitable for direct burial or installation within underground conduits. Designed to withstand harsh outdoor conditions including moisture, thermal shock, lightning, wind abrasion, and ice loading. It features 6 cores with OS2 single-mode fibre, ensuring excellent performance over long distances. The cable is pre-terminated with LC/UPC connectors at both ends for simplified installation. Includes a ruggedised external PE jacket, ideal for the Australian environment, and 2.0mm oversleeving for added protection. Delivered on a drum and includes pulling socks to assist with installation. Fibre networking cables like this carry data, telephone conversations and emails at high speed with less interference than copper, requiring less amplification for long-distance travel. These OS1/OS2 single-mode fibre optic patch leads provide connections from 10Mbit/s to 10Gbit/s Gigabit Ethernet, offering a cost-effective replacement for copper. The fibre optic cable is immune to EMI/RFI frequency and is used on patch panels for connections between outlets and terminal equipment.

FEATURES
6 Cores
OS2 Single-Mode Fibre
LC/UPC Connectors on both ends
2.0mm Oversleeving
Ruggedised External PE Jacket

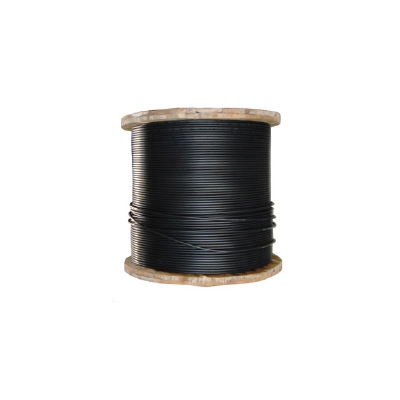

Supplied on a drum
Includes pulling socks
Designed for underground duct or conduit installations
Conforms to ITU-651, TIA/EIA492AAAD
Manufactured with stringent quality control
Fully tested - all leads are supplied with a factory test report
Supports high-speed multichannel data, voice & video applications
Sheath printing includes length marking at one-meter intervals
400mm Staggered termination with LC connectors
Pulling systems on both ends
SPECIFICATIONS
Fibre Mode: OS1 / OS2 Singlemode
Type: LC/UPC-LC/UPC
Cable Diameter: 6.0mm
Cable Colour: Black
Core Diameter: 9/125um
Insertion Loss: 0.25dB
Return Loss: 250dB
Operating Temperature: -20~+70°C
Storage Temperature: -20-+70°C
Length: 200m (with length tolerance as per table)
WARRANTY

1-Year Limited Warranty
