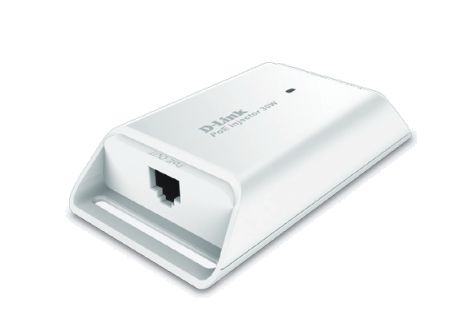

D-link 1-port Gigabit 30w Poe Injector Dpe-301gi
Extend Your Existing Wireless Network
The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.
The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet.
D-Link's DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metres1 distance.
Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.
Technical Specifications
Ports
PoE + Data Port (out)
- Supports half/full-duplex operation
- 10/100/1000BASE-T port
- IEEE 802.3 compliant
- IEEE 802.3u compliant
- IEEE 802.3at compliant
- IEEE 802.3af compliant
- IEEE 802.3ab compliant
Data Port (in)
- Supports half/full-duplex operation
- IEEE 802.3 compliant
- IEEE 802.3u compliant
- IEEE 802.3ab compliant
- 10/100/1000BASE-T port
LED Indicators
- Blue: Power On
- Green: Link On
Physical
Dimensions (L x W x H)
- 109.8 x 62.2 x 24.5 mm
Weight
- 65 grams
Power
- Power Adapter: 55 V / 0.6 A
- Max Consumption: 32.4 watts
- Output: 0.6 A at 55 V
Temperature
- Operating: -10 to 50 °C
- Storage: -30 to 70 °C
Humidity
- Operating: 5% to 95% non-condensing
- Storage: 5% to 95% non-condensing
Certifications
- CE
- FCC
- VCCI
- RCM
- RoHS
- BSMI
