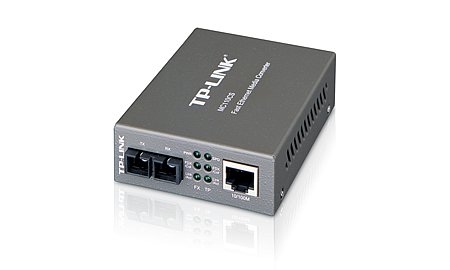

This TP-LINK media converter is designed to convert 100BASE-FX fibre to 100Base-TX copper media or the opposite way. The TP-LINK is designed to be used with a single-mode fibre cable utilising the SC-Type connector.

FEATURES
Supports longwave (LX) laser specification at a full wire speed-forwarding rate
It works at 1310nm on both transmitting and receiving data
Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs
Able to be used as a stand-alone device (no Chassis required)
Able to be used with TP-LINK's 19" system chassis
Will transmit at extended fibre optic distances utilising single-mode fibre up to 20 kilometres
Auto-negotiation of 10/100Mbps and auto MDI/MDIX for TX port
Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
Link Fault Passthrough and Far End Fault minimise the loss caused by link failure timely
Extend fibre distance up to 20km
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply
SPECIFICATIONS
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Back pressure)
Extends fibre distance up to 20km
Link Fault Passthrough and Far End Fault minimise the loss caused by link failure timely
Ports: 1 x 100M SC port, 1 x 100M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX: Single-mode Fibre
LED Indicators: PWR, FDX/Col, Link/Act, SPD
Dimensions (W*D*H): 94.5 x 73.0 x 27.0 mm
Power Supply: External power supply, Power Output : 9V
Safety & Emission: FCC, CE, RoH
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
WARRANTY

3-years limited warranty
