Startech 10 Port Industrial Usb 3.0 Hub - Esd And Surge Protection -din Rail Or Surface-mountable
SKU
234388
Brand
MPN
ST1030USBM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $286.00 Regular Price $329.00
Buy Now And Earn 286 Reward Points!
QUICK OVERVIEW

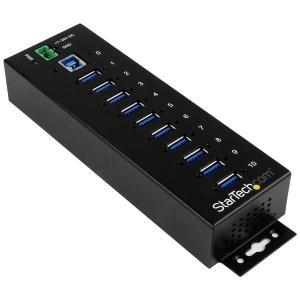

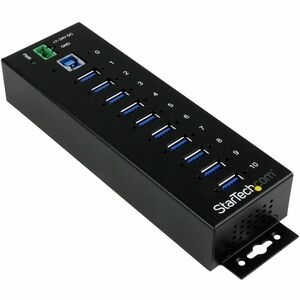

Metal Housing - Rugged USB Hub w/ Terminal ST1030USBM
Add ten USB 3.0 (5Gbps) ports with this DIN rail or surface-mountable metal hub
| .jpg) |
Connect more USB devicesDesigned for a high volume of connections in industrial environments, this robust USB 3.0 hub offers ten connection ports, unlike most four or seven-port USB 3.0 (also known as USB 3.1 Gen 1) hubs. With more ports you can connect more devices, such as USB-based control equipment, external storage, and more. Plus, you can avoid the aggravation of connecting and disconnecting devices when all ports are occupied. The hub also supports USB Battery Charging Specification 1.2, delivering up to 1.5 amps power to each USB port, so you can charge your mobile devices faster than traditional USB ports allow. |  |
 | Perfect for harsh industrial environmentsThis industrial USB hub delivers reliable performance with a metal, heavy-duty housing. And because it supports wide-range 7-24V DC terminal block input, you have the flexibility to power the hub as required, based on your own power input capabilities. Perfect for factory environments, the rugged hub also supports an extended operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices. |
Locate the hub where you need it mostWith versatile installation options, you can install the hub where it’s best suited for your environment. You can securely mount the USB 3.0 hub to a surface, wall, or under a desk, and, it includes optional DIN rail mounts for use with equipment rack installations. |  |
 | Works with your older USB devicesThe industrial hub supports the full 5Gbps bandwidth of USB 3.0 and is also backward compatible with previous USB devices. You can connect your legacy USB 2.0 and 1.x peripherals alongside your newer USB 3.0 devices without any disruptions. The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support. |
Applications
- Install the hub in tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage
- Deploy on assembly lines where only terminal block power is available
- Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet
| Connector(s) | |
| Connector Type(s) | Terminal Block (2 Wire) |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-B (9 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 5%~95% RH (Non-condensing) |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | Genesys Logic - GL3520 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB 3.0 - Backward compatible with USB 2.0/1.1 |
| USB Battery Charging Specification Rev. 1.2 | |
| Interface | USB 3.0 |
| Ports | 10 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Indicators | |
| LED Indicators | Power (Green) |
| Packaging Information | |
| Shipping (Package) Weight | 567 g [20 oz] |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF | 119388 hours |
| Surge Protection | 15kV ESD protection 350 W surge protection |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Physical Characteristics | |
| Cable Length | 2032 mm [80 in] |
| Color | Black |
| Enclosure Type | Steel |
| Form Factor | Industrial |
| Product Height | 31 mm [1.2 in] |
| Product Length | 198 mm [7.8 in] |
| Product Weight | 343 g [12.1 oz] |
| Product Width | 56 mm [2.2 in] |
| Power | |
| Input Voltage | 7 ~ 24 DC |
| Power Source | Terminal Block |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Note | If connected to a USB 2.0 host port, performance may be limited |
| This product is intended for use with terminal block power only ? Standard AC adapter not available | |
| System and Cable Requirements | Host computer with an available USB 3.0 port |
| What's in the Box | |
| Included in Package | 10-port industrial USB 3.0 hub |
| DIN rail mounting kit | |
| instruction manual | |
| terminal block (2 wire) | |
| USB 3.0 host cable | |
