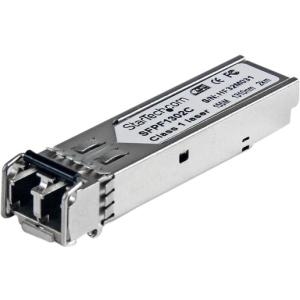

Startech Cisco Compatible 100 Mbps Fiber Sfp Transceiver Module Mm Lc W/ Ddm - 2 Km (mini-gbic)
QUICK OVERVIEW
The SFPF1302C Cisco® Compatible Fast Ethernet Fiber SFP Transceiver Module MM LC - 2 km (1.2 miles) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your 100 Mbps fiber networking equipment or fiber media converter.
Featuring data rates of up to 155 Mbps and support for Digital Diagnostics Monitoring (DDM), this LC SFP module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering convenience and scalability, the fiber transceiver is fully hot-pluggable, enabling you to install the module without interrupting network traffic or requiring a device reboot.
This 1300nm multi-mode SFP module is compatible with the Cisco GLC-FE-100FX transceiver.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Fully compliant with MSA standards, this hot-pluggable module can be installed into any networking device that features an MSA compliant or Cisco compliant port
- Equipped with an industry standard multimode LC interface, this module can extend your network connectivity up to 2 km
Performance | |
Max Transfer Distance | 2 km (1.2 mi) |
Maximum Data Transfer Rate | 155 Mbps |
MTBF | 1,472,572 hours |
Wavelength | 1310nm |
Physical Characteristics | |
Product Height | 14 mm [0.6 in] |
Product Length | 65 mm [2.6 in] |
Product Weight | 25 g [0.9 oz] |
Product Width | 9 mm [0.4 in] |
Special Notes / Requirements | |
Note | For use in 100 Mbps fiber networking equipment and media converters |
System and Cable Requirements | MSA or Cisco compliant SFP port |
What's in the Box | |
Included in Package | 155 Mbps Multi Mode LC SFP |
Performance | |
Fiber Type | Multi Mode |
Fiber Operating Mode | Half/Full-Duplex |
DDM | Yes |
Compatible Networks | 100 Mbps |
Packaging Information | |
Shipping (Package) Weight | 95 g [3.4 oz] |
Hardware | |
WDM | No |
Industry Standards | IEEE 802.3u 100BASE-FX |
Compatible Brand | Cisco |
Environmental | |
Storage Temperature | -40?C to 85?C (-40?F to 85?F) |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Humidity | 30~70% RH |
Connector(s) | |
Local Unit Connectors | Fiber Optic LC Duplex Female |
